CR03H205
SMBus battery charger
3X POWER BOX PROVIDES UPS POWER WITH INTEGRATED CHARGING.
- 0 packs
- Charges
- 3
- Cord regions
N-Series
What the CR03H205 brings to the device
Every line on this page traces to the current datasheet revision engineering approved. Nothing here is marketing copy about a generic pack.
Talk to an engineer →-
Charge
Charges Inspired Energy smart packs from mains power.
Specifications
| Functions | Charge |
|---|---|
| Power supply included | Yes |
| AC cord options | US, EU, UK |
| Dimensions (in) | 8.92" x 6.53" x 4.85" |
| Dimensions (mm) | 226.75 x 165.85 x 123.5 |
Specifications come from the current datasheet. Confirm against the datasheet below before committing a design.
Documents
About this part

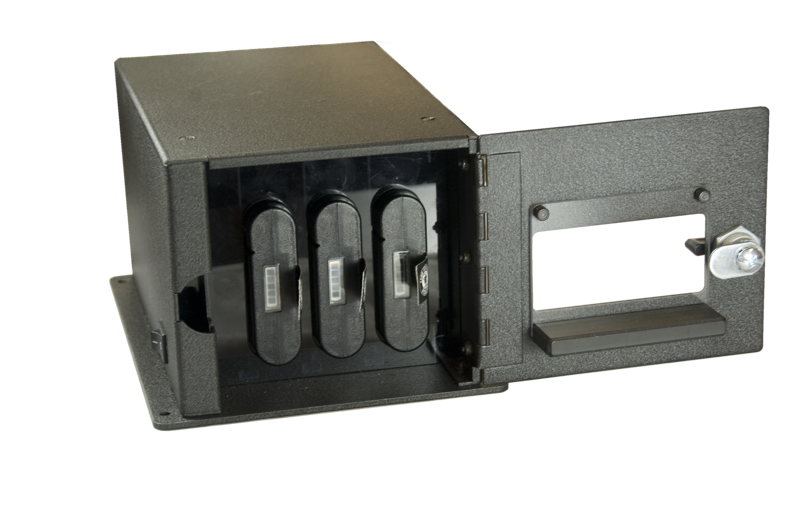

3X POWER BOX PROVIDES UPS POWER WITH INTEGRATED CHARGING. 24VDC/150W output with 150W input charge power for simultaneous charging of on-board batteries. Ideal for backup power on rack equipment or electronic cart applications. The new power pack from Inspired Energy works with our 8-cell, 98Wh NH2054QE34 battery packs (sold separately) & includes the following features: • Onboard chargers with globally compliant AC/DC power adaptor included.• 24VDC/150W voltage output.(Output Mate: Lemo ERA.1S.302.CLL or PCA.1S.302.CLLC62Z)• Battery fuel gauge remains visible at all times through the windowed door.• On-off power switch for full output isolation.• Ruggedized dustproof case.• Locking output connector for a secure connection. To place an order or for additional quantity pricing, please contact us.
