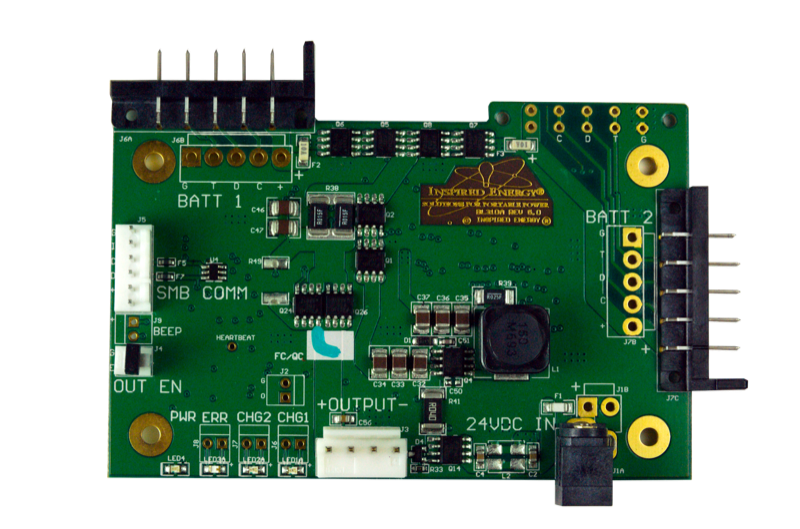

EB325A
Embeddable board
Dual Battery Charger Board, N-series (3.6 to 14.4V battery).
- undefined-undefined V
- Battery range
Embeddable board
What the EB325A brings to the device
Every line on this page traces to the current datasheet revision engineering approved. Nothing here is marketing copy about a generic pack.
Talk to an engineer →-
Battery range
undefined to undefined V packs.
Specifications
| Input voltage | undefined VDC |
|---|---|
| Battery voltage range | undefined-undefined V |
| Output | Battery voltage or input, whichever is higher |
Specifications come from the Revision 1.11 datasheet. Confirm against the datasheet below before committing a design.
Documents
About this part
Dual Battery Charger Board, N-series (3.6 to 14.4V battery). 20-24VDC, 60W input. 24VDC input passes thru when present, if battery not present for output. Vin: 20-24VDC Nom Batt V: 3.6 to 14.4V Vo: Batt or Vin
