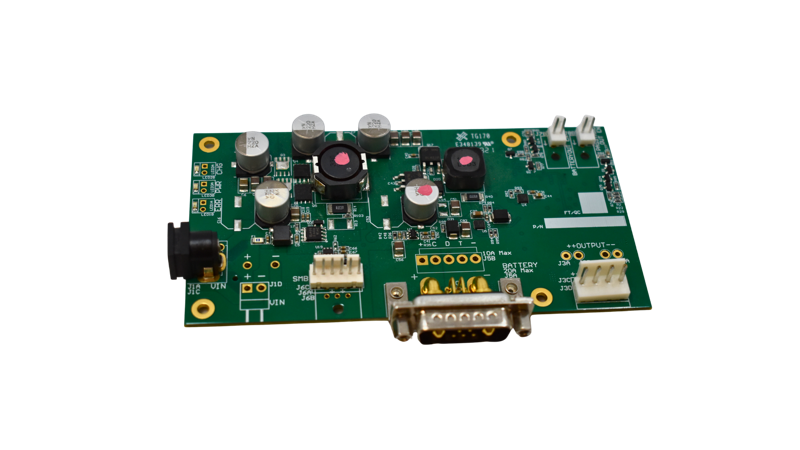

EB486A
Embeddable board
Single Battery Charger Board, P-Series (3.6 to 28.8V battery).
- undefined-undefined V
- Battery range
Embeddable board
What the EB486A brings to the device
Every line on this page traces to the current datasheet revision engineering approved. Nothing here is marketing copy about a generic pack.
Talk to an engineer →-
Battery range
undefined to undefined V packs.
Specifications
| Input voltage | undefined VDC |
|---|---|
| Battery voltage range | undefined-undefined V |
| Output | Battery voltage or input, whichever is higher |
| Dimensions (in) | 2.75" x 5.25" x 6" |
Specifications come from the Revision 1.0 datasheet. Confirm against the datasheet below before committing a design.
Documents
About this part
Single Battery Charger Board, P-Series (3.6 to 28.8V battery). 10-40VDC, 60W input. Vin: 10-40VDC Nom Batt V: 3.6-28.8V Vo: Batt or Vin
