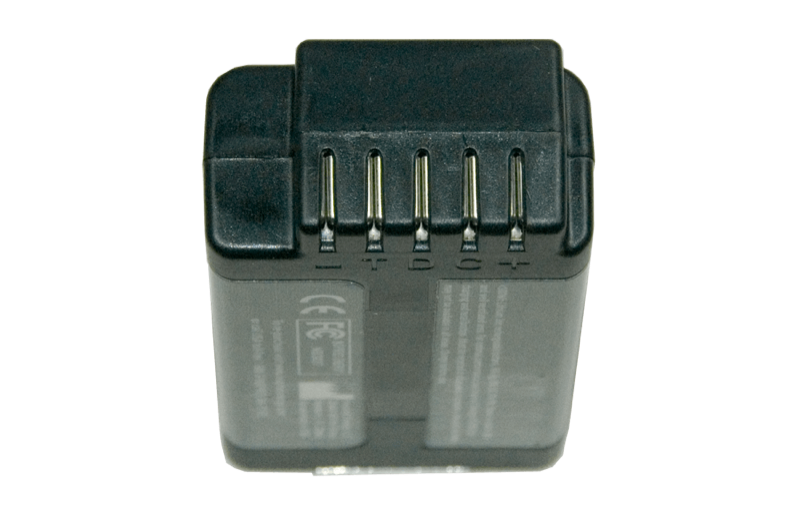

NB3037HD29
7.2 V smart lithium-ion battery
7.2 V 2.8 Ah smart lithium-ion battery pack.
- 7.2 V
- Nominal voltage
- 2.8 Ah
- Capacity
- 20 Wh
- Energy
- 8 A
- Max current
N-Series
What the NB3037HD29 brings to the device
Every line on this page traces to the current datasheet revision engineering approved. Nothing here is marketing copy about a generic pack.
Talk to an engineer →-
On-pack fuel gauge
Always on 5-Bar LCD. Charge state at a glance, no host required.
-
Cell pack
2 x 18650 lithium-ion cells in a 2S1P array, matched and welded in Newberry, Florida.
-
Compact, rugged case
85 x 42 x 23 mm, rectangular. Molded here, not imported.
Specifications
| Nominal voltage | 7.2 V |
|---|---|
| Capacity | 2.8 Ah |
| Energy | 20 Wh |
| Maximum discharge current | 8 A |
| Rated power | 40 W |
| Chemistry | Lithium-ion |
| Cell | 2 x 18650 |
| Cell array | 2S1P |
| Shape | Rectangular |
| Dimensions (in) | 3.36" x 1.7" x 0.9" |
| Dimensions (mm) | 85 x 42 x 23 |
| Equivalent lithium content | 2 g |
| Fuel gauge | Always on 5-Bar LCD |
| IP rating | None |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
| Cavity size | 24mm x 43mm cross-section |
Specifications come from the Revision 1.2.1 datasheet. Confirm against the datasheet below before committing a design.
Chargers for this pack
Accessories that fit
- 610005 Straight Connector - TE Part Number: 5787446-1
- 610007 90° Connector with Right-Hand Key - TE Part Number: 5787422-1
- 610018 90° Connector with Left-Hand Key - TE Part Number 5787428-1
- 629080 3' 5-Way cable
- 936188 Travel / dust cap for 203x range batteries
- ATA004N USB-to-SMBus smart battery interface with “Y” USB/Battery cable.
- BL237A Connector Mounting Circuit Board
- EB397A Connector Board with Ideal Diode Circuit.
Documents
About this part
NB3037HD29 Smart Lithium-Ion Battery: Capable of higher discharge rates and lower temperature operation than NB3037 smart battery packs, the NB3037HD29 battery pack incorporates the standard features that designers and engineers have come to rely on for safety and function, such as SMbus, a pull tab for easy removal and on-pack LCD display for relative SOC indication. The NB3037 (2S1P) 7.2V lithium ion pack has tested as low as -30C and is ideally designed for use in compact and handheld devices. (Note, in cases of low temperature applications, we strongly recommend testing in your specific application). With 8A discharge capability, NB3037 batteries are ideally suited as a small hot-swap battery to hold up the device for a short period while the main battery is charged. Features: SMbus • Pull tab for easy removal • On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance. NB3037HD29 Smart Li-ion battery customization options: SHA-1 secure handshake • Custom label • Custom Firmware • Additional performance options for OEM applications N-series chargers are recommended for these batteries. Need additional capacity? Check out our NB4037 smart batteries The NB3037HD29 is our newest model, designed to outperform the previous NB2037ZD25, NB3037HD25 & HD26 models.
