- Battery pack
NB4033HD50
3.6 V smart lithium-ion battery

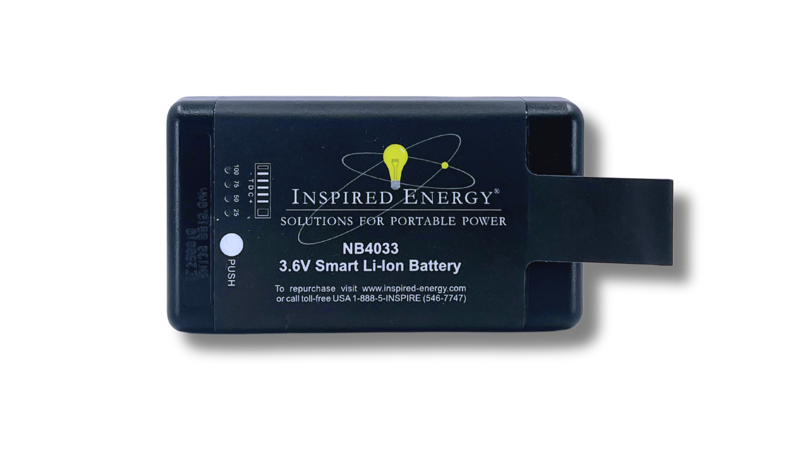

3.6 V 10 Ah smart lithium-ion battery pack.
- 3.6 V
- Nominal voltage
- 10 Ah
- Capacity
- 36 Wh
- Energy
- 10 A
- Max current
N-Series
What the NB4033HD50 brings to the device
Every line on this page traces to the current datasheet revision engineering approved. Nothing here is marketing copy about a generic pack.
Talk to an engineer →-
Cell pack
2 x 21700 lithium-ion cells in a 1S2P array, matched and welded in Newberry, Florida.
-
Compact, rugged case
94.996 x 53.34 x 27.432 mm, rectangular. Molded here, not imported.
Specifications
| Nominal voltage | 3.6 V |
|---|---|
| Capacity | 10 Ah |
| Energy | 36 Wh |
| Maximum discharge current | 10 A |
| Rated power | 25 W |
| Chemistry | Lithium-ion |
| Cell | 2 x 21700 |
| Cell array | 1S2P |
| Shape | Rectangular |
| Dimensions (in) | 3.74" x 2.1" x 1.08" |
| Dimensions (mm) | 94.996 x 53.34 x 27.432 |
| IP rating | None |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
Specifications come from the Revision 1.0 datasheet. Confirm against the datasheet below before committing a design.
Chargers for this pack
Accessories that fit
- 610005 Straight Connector - TE Part Number: 5787446-1
- 610007 90° Connector with Right-Hand Key - TE Part Number: 5787422-1
- 610018 90° Connector with Left-Hand Key - TE Part Number 5787428-1
- 629102A1 3FT, 5-conductor straight cable for NB403x li-ion smart battery packs.
- 936294 Silicone dustcap for NB403x series batteries.
- ATA004N USB-to-SMBus smart battery interface with “Y” USB/Battery cable.
- BL237A Connector Mounting Circuit Board
- EB397A Connector Board with Ideal Diode Circuit.
Documents
About this part
NB4033HD50 Smart Lithium-Ion Battery: The NB4033HD50 (1S2P) 3.6V smart lithium ion battery incorporates the standard features that designers and engineers have come to rely on for safety and function while delivering exceptional power and reliability. Inspired Energy's rechargeable smart lithium-ion battery packs can perform at -20°C for low temperature applications, as the low internal impedance enable the cells to deliver good capacity and discharge current. Features: • SMbus • Pull tab for easy removal • On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance. NB4033HD50 Smart Li-ion battery customization options: • SHA-1 secure handshake • Custom label • Custom Firmware • Additional performance options for OEM applications N-series chargers are recommended for these batteries.
