NC2560A22
10.8 V smart lithium-ion battery

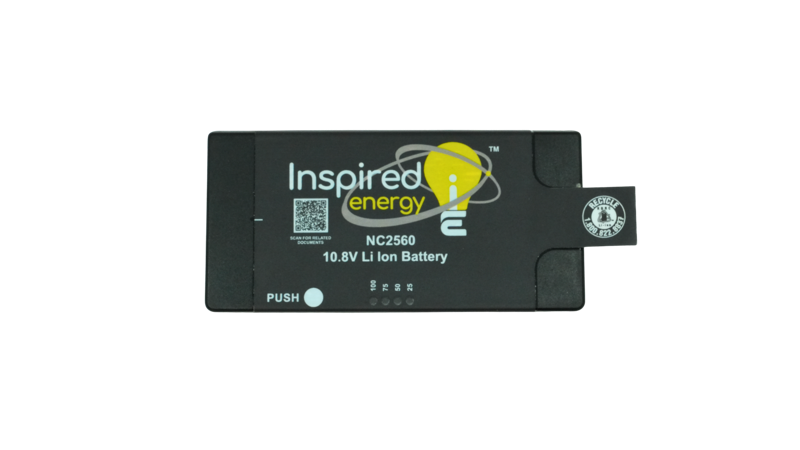

10.8 V 2.2 Ah smart lithium-ion battery pack.
- 10.8 V
- Nominal voltage
- 2.2 Ah
- Capacity
- 24 Wh
- Energy
- 2 A
- Max current
N-Series
What the NC2560A22 brings to the device
Every line on this page traces to the current datasheet revision engineering approved. Nothing here is marketing copy about a generic pack.
Talk to an engineer →-
On-pack fuel gauge
Always on 5-Bar LCD. Charge state at a glance, no host required.
-
Cell pack
x 18650 lithium-ion cells in a 3S1P array, matched and welded in Newberry, Florida.
-
Approvals
UL. Testing summary in the documents below.
Specifications
| Nominal voltage | 10.8 V |
|---|---|
| Capacity | 2.2 Ah |
| Energy | 24 Wh |
| Maximum discharge current | 2 A |
| Rated power | 15 W |
| Chemistry | Lithium-ion |
| Cell | x 18650 |
| Cell array | 3S1P |
| Shape | Rectangular |
| Dimensions (in) | 4.75" x 2.4" x 0.64" |
| Dimensions (mm) | 120 x 60 x 16.13 |
| Equivalent lithium content | 3 g |
| Fuel gauge | Always on 5-Bar LCD |
| IP rating | None |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
| Cavity size | 17mm x 61mm cross section |
| Approvals | UL |
Specifications come from the Revision 2.0 datasheet. Confirm against the datasheet below before committing a design.
Chargers for this pack
Accessories that fit
- 610005 Straight Connector - TE Part Number: 5787446-1
- 610007 90° Connector with Right-Hand Key - TE Part Number: 5787422-1
- 610018 90° Connector with Left-Hand Key - TE Part Number 5787428-1
- ATA004N USB-to-SMBus smart battery interface with “Y” USB/Battery cable.
- BL237A Connector Mounting Circuit Board
- EB397A Connector Board with Ideal Diode Circuit.
Documents
About this part
