- N-Series
- Battery pack

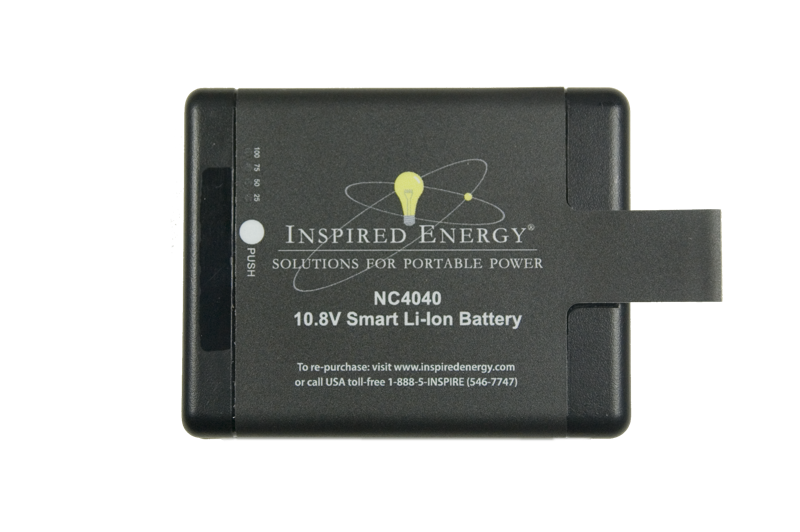

NC4040QE50
10.8 V smart lithium-ion battery
10.8 V 5 Ah smart lithium-ion battery pack.
- 10.8 V
- Nominal voltage
- 5 Ah
- Capacity
- 54 Wh
- Energy
- 8 A
- Max current
N-Series
What the NC4040QE50 brings to the device
Every line on this page traces to the current datasheet revision engineering approved. Nothing here is marketing copy about a generic pack.
Talk to an engineer →-
On-pack fuel gauge
Push button 4-bar LED. Charge state at a glance, no host required.
-
Cell pack
3 x 21700 lithium-ion cells in a 3S1P array, matched and welded in Newberry, Florida.
-
Approvals
UL. Testing summary in the documents below.
Specifications
| Nominal voltage | 10.8 V |
|---|---|
| Capacity | 5 Ah |
| Energy | 54 Wh |
| Maximum discharge current | 8 A |
| Rated power | 60 W |
| Chemistry | Lithium-ion |
| Cell | 3 x 21700 |
| Cell array | 3S1P |
| Shape | Square |
| Dimensions (in) | 3.74" x 2.95" x 1.08" |
| Dimensions (mm) | 94.89 x 74.81 x 27.26 |
| Equivalent lithium content | 2 g |
| Fuel gauge | Push button 4-bar LED |
| IP rating | None |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
| Cavity size | 27.8mm x 76.4mm cross section |
| Approvals | UL |
Specifications come from the Revision 1.1 datasheet. Confirm against the datasheet below before committing a design.
Chargers for this pack
Accessories that fit
- 610005 Straight Connector - TE Part Number: 5787446-1
- 610007 90° Connector with Right-Hand Key - TE Part Number: 5787422-1
- 610018 90° Connector with Left-Hand Key - TE Part Number 5787428-1
- 629103A1 3FT, 5-conductor straight cable for NC404x li-ion smart battery packs.
- 936295 Silicone dustcap for NC404x series batteries.
- ATA004N USB-to-SMBus smart battery interface with “Y” USB/Battery cable.
- BL237A Connector Mounting Circuit Board
- EB397A Connector Board with Ideal Diode Circuit.
Documents
About this part
NC4040QE50 Smart Lithium-Ion Battery: The Inspired Energy 40xx range of rechargeable smart Li-Ion battery packs utilize 21700 cells and are designed for applications where size and runtime may be a consideration. The NC4040QE50 (3S1P) 10.8V smart lithium ion battery incorporates the standard features that designers and engineers have come to rely on for safety and function, such as SMbus, a pull tab for easy removal and on-pack LED display for relative SOC indication. The NC4040 battery pack can perform at -20°C for low temperature applications, as the low internal impedance enable the cells to deliver good capacity and discharge current. (Note, in low temperature applications, we recommend testing the device at temperature to validate performance). Designed for use in compact and handheld devices, this battery is IEC, UL, CSA 62133-2, & BIS approved to meet the highest industry standards for safety and performance. Features: • SMbus • Pull tab for easy removal • On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance. NC4040QE50 Smart Li-ion battery customization options: • SHA-1 secure handshake • Custom label • Custom Firmware • Additional performance options for OEM applications N-series chargers are recommended for these batteries. Looking for something with a smaller format? We recommend the NC3040HD29 smart battery Need additional capacity? Check out our NF3040HD34 smart battery
