- N-Series
- Battery pack

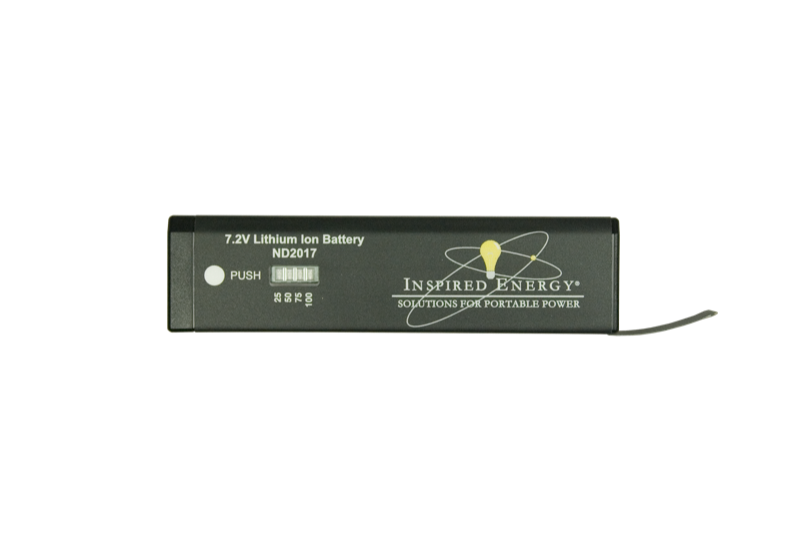

ND2017A34
7.2 V smart lithium-ion battery
7.2 V 6.8 Ah smart lithium-ion battery pack.
- 7.2 V
- Nominal voltage
- 6.8 Ah
- Capacity
- 49 Wh
- Energy
- 3 A
- Max current
N-Series
What the ND2017A34 brings to the device
Every line on this page traces to the current datasheet revision engineering approved. Nothing here is marketing copy about a generic pack.
Talk to an engineer →-
Approvals
UL. Testing summary in the documents below.
Specifications
| Nominal voltage | 7.2 V |
|---|---|
| Capacity | 6.8 Ah |
| Energy | 49 Wh |
| Maximum discharge current | 3 A |
| Rated power | 15 W |
| Chemistry | Lithium-ion |
| Shape | Rectangular |
| Dimensions (in) | 5.69" x 1.48" x 0.79" |
| Dimensions (mm) | 144.65 x 37.59 x 20.07 |
| IP rating | None |
| Approvals | UL |
Specifications come from the Revision 3.0 datasheet. Confirm against the datasheet below before committing a design.
Chargers for this pack
- CH1000 Charger, charge + calibrate
- CH1000CAL Charger, charge + calibrate
- CH1010 2 bay, charge + calibrate
- CH1111 4 bay, charge + calibrate
- CH1111CAL Charger, charge + calibrate
- CH4000 Charger, charge
- CH4040 2 bay, charge
- CH4444 4 bay, charge
- CH5000 Charger, charge + calibrate
- CH5050 2 bay, charge + calibrate
- CH5555 4 bay, charge + calibrate
- CH6555 6 bay, charge + calibrate
- CH7000 Charger, charge
- CH7070 2 bay, charge
- CH7100 Charger, charge
- CH7171 Charger, charge
Accessories that fit
- 610005 Straight Connector - TE Part Number: 5787446-1
- 610007 90° Connector with Right-Hand Key - TE Part Number: 5787422-1
- 610018 90° Connector with Left-Hand Key - TE Part Number 5787428-1
- ATA004N USB-to-SMBus smart battery interface with “Y” USB/Battery cable.
- BL237A Connector Mounting Circuit Board
- EB397A Connector Board with Ideal Diode Circuit.
Documents
About this part
ND2017A34 Smart Lithium-Ion Battery: The ND2017A34 (2S2P) 7.2V smart lithium ion battery pack incorporates the standard features that designers and engineers have come to rely on for safety and function, such as SMbus, a pull tab for easy removal and on-pack LED display for relative SOC indication. Features: • SMbus • Pull tab for easy removal • On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance. ND2017A34 Smart Li-ion battery customization options: • SHA-1 secure handshake • Custom label • Custom Firmware • Additional performance options for OEM applications Need IEC, UL, CSA 62133-2, KC, BIS PSE approved? Consider the ND2017QE34 smart battery Looking for something with a higher discharge rate and lower temperature option? We recommend the ND3037HD29 smart battery Need additional capacity? Check out our NB4037 smart batteries The ND2017A34 Li-ion battery has been updated as a replacement for the previous ND2017A22, ND2017A24 & ND2017A29 models.
