- Battery pack
ND2034ED34
14.4 V smart lithium-ion battery

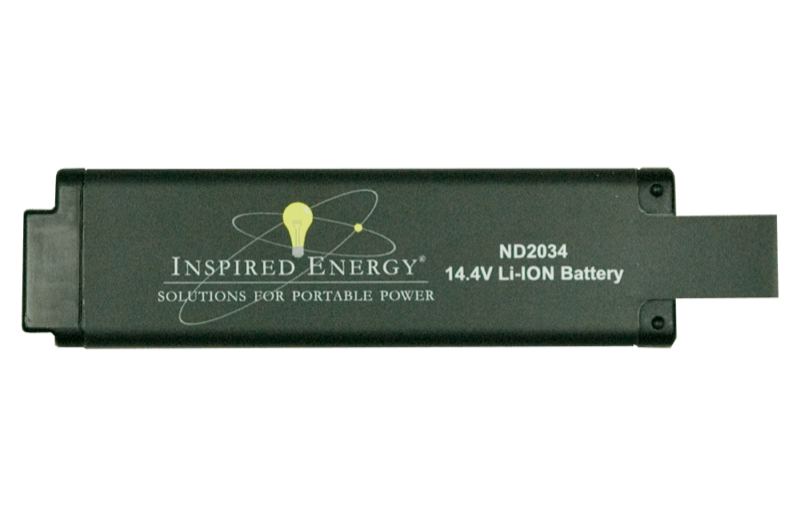

14.4 V 3.4 Ah smart lithium-ion battery pack.
- 14.4 V
- Nominal voltage
- 3.4 Ah
- Capacity
- 49 Wh
- Energy
- 8 A
- Max current
N-Series
What the ND2034ED34 brings to the device
Every line on this page traces to the current datasheet revision engineering approved. Nothing here is marketing copy about a generic pack.
Talk to an engineer →-
On-pack fuel gauge
Always on 5-Bar LCD. Charge state at a glance, no host required.
-
Cell pack
4 x 18650 lithium-ion cells in a 4S1P array, matched and welded in Newberry, Florida.
-
Approvals
UL. Testing summary in the documents below.
Specifications
| Nominal voltage | 14.4 V |
|---|---|
| Capacity | 3.4 Ah |
| Energy | 49 Wh |
| Maximum discharge current | 8 A |
| Rated power | 80 W |
| Chemistry | Lithium-ion |
| Cell | 4 x 18650 |
| Cell array | 4S1P |
| Shape | Rectangular |
| Dimensions (in) | 6" x 1.7" x 9" |
| Dimensions (mm) | 151 x 42 x 23 |
| Equivalent lithium content | 4 g |
| Fuel gauge | Always on 5-Bar LCD |
| IP rating | None |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
| Cavity size | 24mm x 43mm cross-section |
| Approvals | UL |
Specifications come from the Revision 1.0.1 datasheet. Confirm against the datasheet below before committing a design.
Chargers for this pack
- CH1000 Charger, charge + calibrate
- CH1010 2 bay, charge + calibrate
- CH1111 4 bay, charge + calibrate
- CH4000 Charger, charge
- CH4040 2 bay, charge
- CH4444 4 bay, charge
- CH5000 Charger, charge + calibrate
- CH5050 2 bay, charge + calibrate
- CH5555 4 bay, charge + calibrate
- CH6555 6 bay, charge + calibrate
- CH7000 Charger, charge
- CH7070 2 bay, charge
- CH7100 Charger, charge
- CH7171 Charger, charge
Accessories that fit
- 610005 Straight Connector - TE Part Number: 5787446-1
- 610007 90° Connector with Right-Hand Key - TE Part Number: 5787422-1
- 610018 90° Connector with Left-Hand Key - TE Part Number 5787428-1
- 629080 3' 5-Way cable
- 936188 Travel / dust cap for 203x range batteries
- ATA004N USB-to-SMBus smart battery interface with “Y” USB/Battery cable.
- BL237A Connector Mounting Circuit Board
- EB397A Connector Board with Ideal Diode Circuit.
Documents
About this part
ND2034ED34 Smart Lithium-Ion Battery: The Inspired Energy 203x range of rechargeable smart Li-Ion battery packs are ideally designed for use in compact and handheld devices. The ND2034ED34 (4S1P) 14.4V, 8A smart lithium ion battery incorporates the standard features that designers and engineers have come to rely on for safety and function, such as SMbus, a pull tab for easy removal and on-pack LCD display for relative SOC indication. The ND 2034 battery pack can perform at -20°C for low temperature applications, as the low internal impedance enable the cells to deliver good capacity and discharge current. (Note, in low temperature applications, we recommend testing the device at temperature to validate performance). Features: • SMbus • Pull tab for easy removal • On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance. ND2034ED34 Smart Li-ion battery customization options: • SHA-1 secure handshake • Custom label • Custom Firmware • Additional performance options for OEM applications N-series chargers are recommended for these batteries. Need IEC, UL, CSA 62133-2, KC, BIS PSE approved? Consider the ND2034QE34 smart battery Looking for something with a higher discharge rate and lower temperature option? We recommend the NB3037HD29 smart battery Need additional capacity? Check out our NB4037 smart batteries The ND2034ED34 is our newest model, designed to outperform the previous ND2034ED29 & ND2034ED31 models.
