- N-Series
- Battery pack

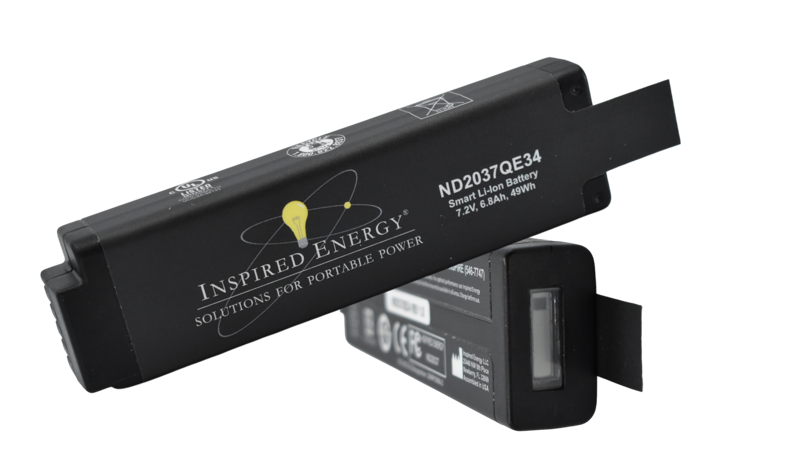

ND2037QE34
7.2 V smart lithium-ion battery
7.2 V 6.8 Ah smart lithium-ion battery pack.
- 7.2 V
- Nominal voltage
- 6.8 Ah
- Capacity
- 49 Wh
- Energy
- 8 A
- Max current
N-Series
What the ND2037QE34 brings to the device
Every line on this page traces to the current datasheet revision engineering approved. Nothing here is marketing copy about a generic pack.
Talk to an engineer →-
Cell pack
4 x 18650 lithium-ion cells in a 2S2P array, matched and welded in Newberry, Florida.
-
Approvals
UL.
Specifications
| Nominal voltage | 7.2 V |
|---|---|
| Capacity | 6.8 Ah |
| Energy | 49 Wh |
| Maximum discharge current | 8 A |
| Rated power | 40 W |
| Chemistry | Lithium-ion |
| Cell | 4 x 18650 |
| Cell array | 2S2P |
| Shape | Rectangular |
| Dimensions (in) | 6" x 1.7" x 0.9" |
| Dimensions (mm) | 153 x 42 x 23 |
| IP rating | None |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
| Approvals | UL |
Specifications come from the Revision 1.2.1 datasheet. Confirm against the datasheet below before committing a design.
Chargers for this pack
- CH1000 Charger, charge + calibrate
- CH1000CAL Charger, charge + calibrate
- CH1010 2 bay, charge + calibrate
- CH1111 4 bay, charge + calibrate
- CH1111CAL Charger, charge + calibrate
- CH4000 Charger, charge
- CH4040 2 bay, charge
- CH4444 4 bay, charge
- CH5000 Charger, charge + calibrate
- CH5050 2 bay, charge + calibrate
- CH5555 4 bay, charge + calibrate
- CH6555 6 bay, charge + calibrate
- CH7000 Charger, charge
- CH7070 2 bay, charge
- CH7100 Charger, charge
- CH7171 Charger, charge
Accessories that fit
- 610005 Straight Connector - TE Part Number: 5787446-1
- 610007 90° Connector with Right-Hand Key - TE Part Number: 5787422-1
- 610018 90° Connector with Left-Hand Key - TE Part Number 5787428-1
- 629080 3' 5-Way cable
- 936188 Travel / dust cap for 203x range batteries
- ATA004N USB-to-SMBus smart battery interface with “Y” USB/Battery cable.
- BL237A Connector Mounting Circuit Board
- EB397A Connector Board with Ideal Diode Circuit.
Documents
About this part
ND2037QE34 Smart Lithium-Ion Battery: The ND2037QE34 is a high-performance 7.2V smart lithium-ion battery that delivers exceptional power and reliability. Designed for use in compact and handheld devices, this battery is IEC, UL, CSA 62133-2, BIS, KC & PSE approved to meet the highest industry standards for safety and performance. Inspired Energy's 2037 rechargeable smart lithium-ion battery packs can perform at -20°C for low temperature applications. Features: • SMbus • Pull tab for easy removal • On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance. ND2037QE34 Smart Li-ion battery customization options: • SHA-1 secure handshake • Custom label • Custom Firmware • Additional performance options for OEM applications N-series chargers are recommended for these batteries. Looking for something with a higher discharge rate and lower temperature option? We recommend the ND3037HD29 smart battery The ND2037QE34 is our newest model, designed to outperform the previous ND2034HD29 & ND2034HD31 models.
