- N-Series
- Battery pack
ND2053ED34
3.6 V smart lithium-ion battery

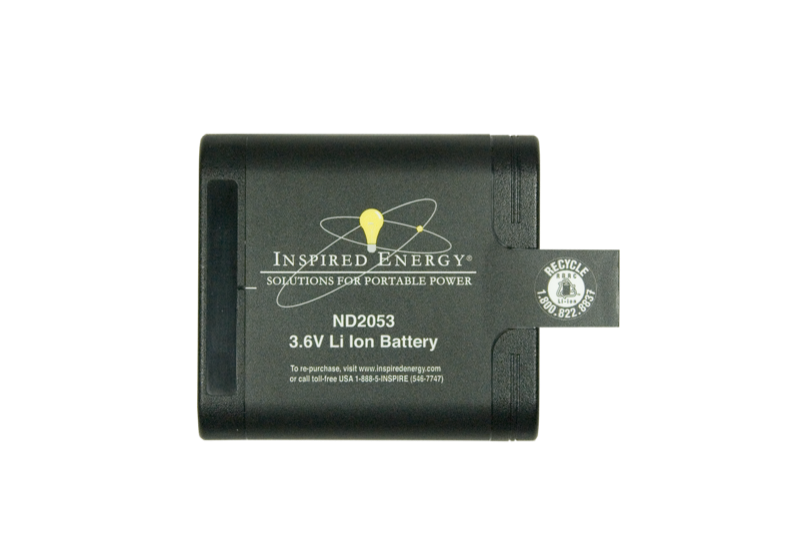

3.6 V 13.6 Ah smart lithium-ion battery pack.
- 3.6 V
- Nominal voltage
- 13.6 Ah
- Capacity
- 49 Wh
- Energy
- 10 A
- Max current
N-Series
What the ND2053ED34 brings to the device
Every line on this page traces to the current datasheet revision engineering approved. Nothing here is marketing copy about a generic pack.
Talk to an engineer →-
On-pack fuel gauge
Always on 5-Bar LCD. Charge state at a glance, no host required.
-
Cell pack
4 x 18650 lithium-ion cells in a 1S4P array, matched and welded in Newberry, Florida.
-
Compact, rugged case
86.4 x 78.7 x 23.02 mm, square. Molded here, not imported.
Specifications
| Nominal voltage | 3.6 V |
|---|---|
| Capacity | 13.6 Ah |
| Energy | 49 Wh |
| Maximum discharge current | 10 A |
| Rated power | 25 W |
| Chemistry | Lithium-ion |
| Cell | 4 x 18650 |
| Cell array | 1S4P |
| Shape | Square |
| Dimensions (in) | 3.4" x 3.1" x 0.91" |
| Dimensions (mm) | 86.4 x 78.7 x 23.02 |
| Equivalent lithium content | 4 g |
| Fuel gauge | Always on 5-Bar LCD |
| IP rating | None |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
| Cavity size | 23.5mm x 80mm cross section |
Specifications come from the Revision 2.1 datasheet. Confirm against the datasheet below before committing a design.
