- Battery pack
ND3034HD29
14.4 V smart lithium-ion battery

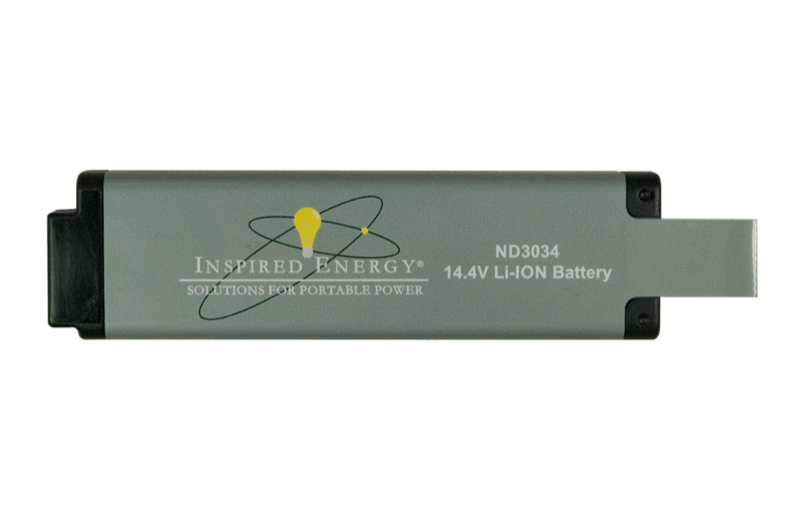

14.4 V 2.8 Ah smart lithium-ion battery pack.
- 14.4 V
- Nominal voltage
- 2.8 Ah
- Capacity
- 40 Wh
- Energy
- 10 A
- Max current
N-Series
What the ND3034HD29 brings to the device
Every line on this page traces to the current datasheet revision engineering approved. Nothing here is marketing copy about a generic pack.
Talk to an engineer →-
On-pack fuel gauge
Always on 5-Bar LCD. Charge state at a glance, no host required.
-
Cell pack
4 x 18650 lithium-ion cells in a 4S1P array, matched and welded in Newberry, Florida.
-
Compact, rugged case
153 x 42 x 23 mm, rectangular. Molded here, not imported.
Specifications
| Nominal voltage | 14.4 V |
|---|---|
| Capacity | 2.8 Ah |
| Energy | 40 Wh |
| Maximum discharge current | 10 A |
| Rated power | 100 W |
| Chemistry | Lithium-ion |
| Cell | 4 x 18650 |
| Cell array | 4S1P |
| Shape | Rectangular |
| Dimensions (in) | 6" x 1.7" x 0.9" |
| Dimensions (mm) | 153 x 42 x 23 |
| Equivalent lithium content | 4 g |
| Fuel gauge | Always on 5-Bar LCD |
| IP rating | None |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
| Cavity size | 24mm x 43mm cross-section |
Specifications come from the Revision 1.0.1 datasheet. Confirm against the datasheet below before committing a design.
Chargers for this pack
- CH1000 Charger, charge + calibrate
- CH4000 Charger, charge
- CH4040 2 bay, charge
- CH5000 Charger, charge + calibrate
- CH5050 2 bay, charge + calibrate
- CH5555 4 bay, charge + calibrate
- CH6555 6 bay, charge + calibrate
- CH7000 Charger, charge
- CR12 12 bay, charge
- CH1000CAL Charger, charge + calibrate
- CH1010 2 bay, charge + calibrate
- CH1111 4 bay, charge + calibrate
- CH1111CAL Charger, charge + calibrate
- CH4444 4 bay, charge
- CH7070 2 bay, charge
- CH7100 Charger, charge
- CH7171 Charger, charge
Accessories that fit
- 610005 Straight Connector - TE Part Number: 5787446-1
- 610007 90° Connector with Right-Hand Key - TE Part Number: 5787422-1
- 610018 90° Connector with Left-Hand Key - TE Part Number 5787428-1
- 629080 3' 5-Way cable
- 936188 Travel / dust cap for 203x range batteries
- ATA004N USB-to-SMBus smart battery interface with “Y” USB/Battery cable.
- BL237A Connector Mounting Circuit Board
- EB397A Connector Board with Ideal Diode Circuit.
Documents
About this part
ND3034HD29 Smart Lithium-Ion Battery: The ND3034 is ideal for low temperature applications as the low internal impedance enables the cells to deliver good capacity and discharge current. The ND3034 can perform as low as -30°C (Note, in cases of low temperature applications, we strongly recommend testing in your specific application). Also, with its 10A discharge capability, the ND3034 is ideally suited as a small “hot-swap” battery to hold up the device for a short period while the main battery is charged. Features: • SMbus • Pull tab for easy removal • On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance. ND3034HD29 Smart Li-ion battery customization options: • SHA-1 secure handshake • Custom label • Custom Firmware • Additional performance options for OEM applications N-series chargers are recommended for these batteries.
