- N-Series
- Battery pack

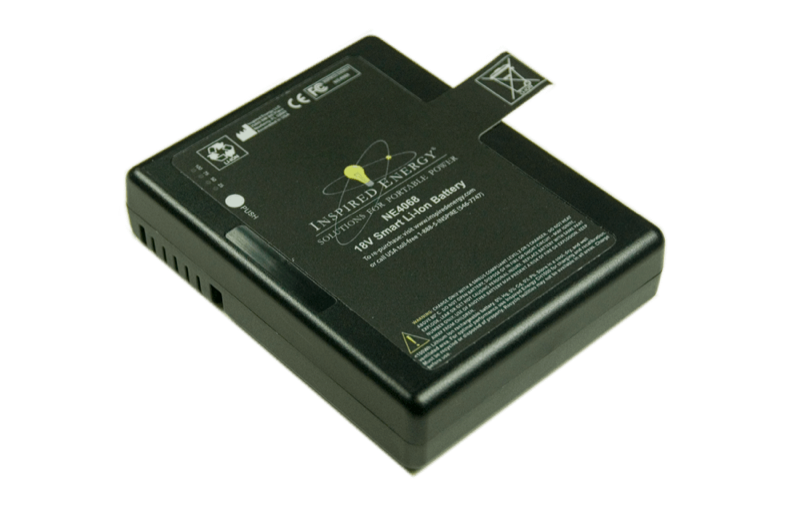

NE4068QE50
18 V smart lithium-ion battery
18 V 5 Ah smart lithium-ion battery pack.
- 18 V
- Nominal voltage
- 5 Ah
- Capacity
- 90 Wh
- Energy
- 8 A
- Max current
N-Series
What the NE4068QE50 brings to the device
Every line on this page traces to the current datasheet revision engineering approved. Nothing here is marketing copy about a generic pack.
Talk to an engineer →-
On-pack fuel gauge
Push button 4-bar LED. Charge state at a glance, no host required.
-
Cell pack
5 x 21700 lithium-ion cells in a 5S1P array, matched and welded in Newberry, Florida.
-
Approvals
UL. Testing summary in the documents below.
Specifications
| Nominal voltage | 18 V |
|---|---|
| Capacity | 5 Ah |
| Energy | 90 Wh |
| Maximum discharge current | 8 A |
| Rated power | 100 W |
| Chemistry | Lithium-ion |
| Cell | 5 x 21700 |
| Cell array | 5S1P |
| Shape | Rectangular |
| Dimensions (in) | 3.74" x 4.72" x 1.08" |
| Dimensions (mm) | 94.89 x 119.85 x 27.26 |
| Equivalent lithium content | 8 g |
| Fuel gauge | Push button 4-bar LED |
| IP rating | None |
| Mating connector | 5-Pin Standard Connector |
| Cavity size | 27.8mm x 121.4mm cross section |
| Approvals | UL |
Specifications come from the Revision 1.0.1 datasheet. Confirm against the datasheet below before committing a design.
Chargers for this pack
Documents
About this part
NE4068QE50 Smart Lithium-Ion Battery: The 40xx range of rechargeable smart Li-Ion battery packs are designed for applications where size and runtime may be a consideration. The NE4068QE50 (5S1P) 18V smartbattery incorporates the standard features that designers and engineers have come to rely on for safety and performance, such as SMbus, a pull tab for easy removal and on-pack LED display for relative SOC indication. With IEC, UL, CSA 62133-2, BIS, KC & PSE, this battery is approved to meet the highest industry standards for safety and performance. The 4068 battery pack can perform at -20°C for low temperature applications, as the low internal impedance enables the cells to deliver good capacity and discharge current. (Note, in low temperature applications, we recommend testing the device at temperature to validate performance). Features: • SMbus • Pull tab for easy removal • On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance. NE4068QE50 Smart Li-ion battery customization options: • SHA-1 secure handshake • Custom label • Custom Firmware • Additional performance options for OEM applications N-series chargers are recommended for these batteries.
