- N-Series
- Battery pack
NF3040QE34
10.8 V smart lithium-ion battery

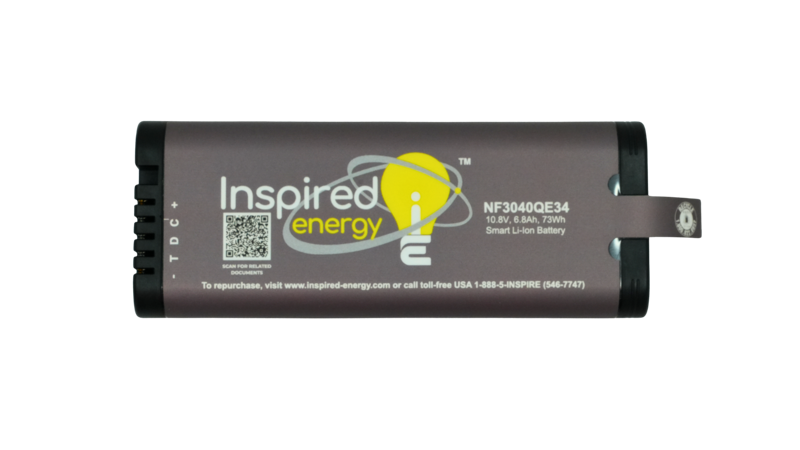

10.8 V 6.8 Ah smart lithium-ion battery pack.
- 10.8 V
- Nominal voltage
- 6.8 Ah
- Capacity
- 73 Wh
- Energy
- 10 A
- Max current
N-Series
What the NF3040QE34 brings to the device
Every line on this page traces to the current datasheet revision engineering approved. Nothing here is marketing copy about a generic pack.
Talk to an engineer →-
On-pack fuel gauge
Always on 5-Bar LCD. Charge state at a glance, no host required.
-
Cell pack
6 x 18650 lithium-ion cells in a 3S2P array, matched and welded in Newberry, Florida.
-
Approvals
UL. Testing summary in the documents below.
Specifications
| Nominal voltage | 10.8 V |
|---|---|
| Capacity | 6.8 Ah |
| Energy | 73 Wh |
| Maximum discharge current | 10 A |
| Rated power | 75 W |
| Chemistry | Lithium-ion |
| Cell | 6 x 18650 |
| Cell array | 3S2P |
| Shape | Rectangular |
| Dimensions (in) | 5.9" x 2.4" x 0.9" |
| Dimensions (mm) | 151 x 59 x 22.4 |
| Equivalent lithium content | 6 g |
| Fuel gauge | Always on 5-Bar LCD |
| IP rating | None |
| Mating connector | 5-Pin Standard Connector |
| Cavity size | 23.5mm x 60mm cross section |
| Approvals | UL |
Specifications come from the Revision 1.0 datasheet. Confirm against the datasheet below before committing a design.
Chargers for this pack
Accessories that fit
- 610005 Straight Connector - TE Part Number: 5787446-1
- 610007 90° Connector with Right-Hand Key - TE Part Number: 5787422-1
- 610018 90° Connector with Left-Hand Key - TE Part Number 5787428-1
- 629028 3', 5-conductor straight cable for 204x, 205x, 304x & 305x range batteries.
- 629030 3', 2-Conductor coiled cable
- 936140 Travel / dust cap for 204x range batteries
- ATA004N USB-to-SMBus smart battery interface with “Y” USB/Battery cable.
- BL237A Connector Mounting Circuit Board
- EB397A Connector Board with Ideal Diode Circuit.
Documents
About this part
NF3040QE34 Smart Lithium-Ion Battery: The NF3040 are ideal for low temperature applications as the low internal impedance enables the cells to deliver good capacity and discharge current. The NF3040 can perform as low as -30°C (note, in cases of low temperature applications, we strongly recommend testing in your specific application). Also, with its 10A discharge capability, the NF3040 is ideally suited as a small “hot-swap” battery to hold up the device for a short period while the main battery is charged. The NF3040QE34 has IEC UL/CSA with TUV FuS certifications. Features: • SMbus • Pull tab for easy removal • On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance. NF3040QE34 Smart Li-ion battery customization options: • SHA-1 secure handshake • Custom label • Custom Firmware • Additional performance options for OEM applications N-series chargers are recommended for these batteries.
