- N-Series
- Battery pack

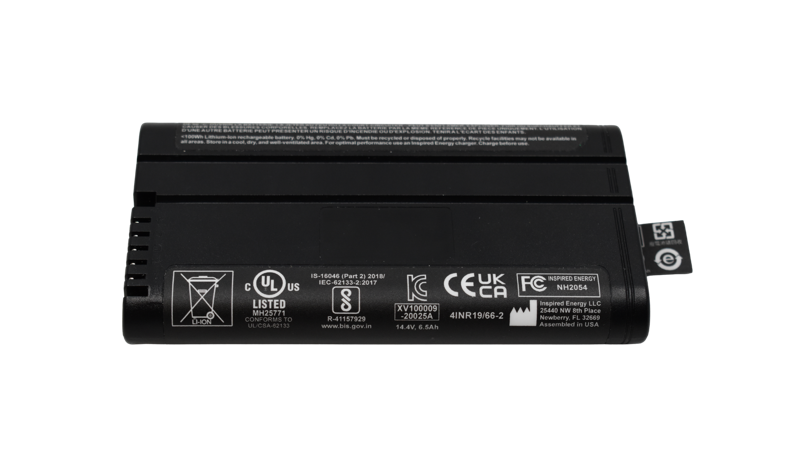

NH2054QE34
14.4 V smart lithium-ion battery
14.4 V 6.8 Ah smart lithium-ion battery pack.
- 14.4 V
- Nominal voltage
- 6.8 Ah
- Capacity
- 98 Wh
- Energy
- 8 A
- Max current
Available for direct purchase, quantities of 1 to 12. Volume orders are quoted.
N-Series
What the NH2054QE34 brings to the device
Every line on this page traces to the current datasheet revision engineering approved. Nothing here is marketing copy about a generic pack.
Talk to an engineer →-
On-pack fuel gauge
Always on 5-Bar LCD. Charge state at a glance, no host required.
-
Cell pack
8 x 18650 lithium-ion cells in a 4S2P array, matched and welded in Newberry, Florida.
-
Approvals
UL. Testing summary in the documents below.
Specifications
| Nominal voltage | 14.4 V |
|---|---|
| Capacity | 6.8 Ah |
| Energy | 98 Wh |
| Maximum discharge current | 8 A |
| Rated power | 80 W |
| Chemistry | Lithium-ion |
| Cell | 8 x 18650 |
| Cell array | 4S2P |
| Shape | Rectangular |
| Dimensions (in) | 6" x 3.1" x 0.9" |
| Dimensions (mm) | 153 x 78.7 x 23 |
| Equivalent lithium content | 8 g |
| Fuel gauge | Always on 5-Bar LCD |
| IP rating | None |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
| Cavity size | 23.5mm x 80mm cross section |
| Optional belt pack | MPL205X or MCL205X |
| Approvals | UL |
Specifications come from the Revision 3.0 datasheet. Confirm against the datasheet below before committing a design.
Chargers for this pack
- CH1000 Charger, charge + calibrate
- CH4000 Charger, charge
- CH4040 2 bay, charge
- CH5000 Charger, charge + calibrate
- CH5050 2 bay, charge + calibrate
- CH5555 4 bay, charge + calibrate
- CH6555 6 bay, charge + calibrate
- CH7000 Charger, charge
- CR12 12 bay, charge
- CH4444 4 bay, charge
- CH1111 4 bay, charge + calibrate
Accessories that fit
- 610005 Straight Connector - TE Part Number: 5787446-1
- 610007 90° Connector with Right-Hand Key - TE Part Number: 5787422-1
- 610018 90° Connector with Left-Hand Key - TE Part Number 5787428-1
- 629030 3', 2-Conductor coiled cable
- 936186 Travel / dust cap for 205x range batteries
- ATA004N USB-to-SMBus smart battery interface with “Y” USB/Battery cable.
- BL237A Connector Mounting Circuit Board
- EB397A Connector Board with Ideal Diode Circuit.
- MCL205VC Car Charger No description published.
- 629028 3', 5-conductor straight cable for 204x, 205x, 304x & 305x range batteries.
Documents
About this part
NH2054QE34 Smart Lithium-Ion Battery: The NH2054QE34 is an IEC, UL 62133-2, BIS, KC & PSE approved model which is ideal for low temperature applications, as the low internal impedance enables the cells to deliver good capacity and discharge current. The 2054 battery can perform as low as -20°C (note, in low temperature applications, we recommend testing the device at temperature to validate performance). Also, with its’ 8A discharge capability, the NH2054 is ideally suited as a small “hot-swap” battery to hold up the device for a short period while the main battery is charged. Features: • SMbus • Pull tab for easy removal • On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance. NH2054QE34 Smart Li-ion battery customization options: • SHA-1 secure handshake • Custom label • Custom Firmware • Additional performance options for OEM applications N-series chargers are recommended for these batteries. Looking for something with a higher discharge rate and lower temperature option? We recommend the NH3054HD34 smart battery Need additional capacity? Check out our NH2057HD34 smart batteries The NH2054QE34 is our newest model, designed to outperform the previous NH2054HD29 & NH2054HD31 models. Buy the NH2054QE34 and get it fast! https://www.inspired-energy.shop/products/nh2054qe34-14-4v-lithium-ion-smart-battery-pack
