- N-Series
- Battery pack
NH3057QE34
7.2 V smart lithium-ion battery

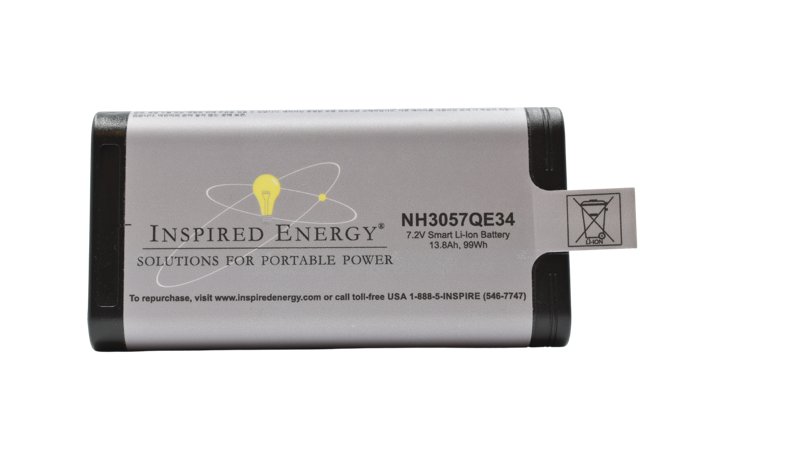

7.2 V 13.6 Ah smart lithium-ion battery pack.
- 7.2 V
- Nominal voltage
- 13.6 Ah
- Capacity
- 98 Wh
- Energy
- 12 A
- Max current
N-Series
What the NH3057QE34 brings to the device
Every line on this page traces to the current datasheet revision engineering approved. Nothing here is marketing copy about a generic pack.
Talk to an engineer →-
On-pack fuel gauge
Always on 5-Bar LCD. Charge state at a glance, no host required.
-
Cell pack
8 x 18650 lithium-ion cells in a 2S4P array, matched and welded in Newberry, Florida.
-
Approvals
UL, REACH, RoHS3. Testing summary in the documents below.
Specifications
| Nominal voltage | 7.2 V |
|---|---|
| Capacity | 13.6 Ah |
| Energy | 98 Wh |
| Maximum discharge current | 12 A |
| Rated power | 60 W |
| Chemistry | Lithium-ion |
| Cell | 8 x 18650 |
| Cell array | 2S4P |
| Shape | Rectangular |
| Dimensions (in) | 5.92" x 3.047" x 0.886" |
| Dimensions (mm) | 150.37 x 77.39 x 22.51 |
| Equivalent lithium content | 8 g |
| Fuel gauge | Always on 5-Bar LCD |
| IP rating | None |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
| Cavity size | 23.5mm x 80mm cross section |
| Optional belt pack | MPL205X or MCL205X |
| Approvals | UL, REACH, RoHS3 |
Specifications come from the Revision 1.0.1 datasheet. Confirm against the datasheet below before committing a design.
Chargers for this pack
- CH1000 Charger, charge + calibrate
- CH1000CAL Charger, charge + calibrate
- CH1010 2 bay, charge + calibrate
- CH1111 4 bay, charge + calibrate
- CH1111CAL Charger, charge + calibrate
- CH4000 Charger, charge
- CH4040 2 bay, charge
- CH4444 4 bay, charge
- CH5000 Charger, charge + calibrate
- CH5050 2 bay, charge + calibrate
- CH5555 4 bay, charge + calibrate
- CH6555 6 bay, charge + calibrate
- CH7000 Charger, charge
- CH7070 2 bay, charge
- CH7100 Charger, charge
- CH7171 Charger, charge
- CR12 12 bay, charge
Accessories that fit
- 610005 Straight Connector - TE Part Number: 5787446-1
- 610007 90° Connector with Right-Hand Key - TE Part Number: 5787422-1
- 610018 90° Connector with Left-Hand Key - TE Part Number 5787428-1
- 629028 3', 5-conductor straight cable for 204x, 205x, 304x & 305x range batteries.
- 629030 3', 2-Conductor coiled cable
- 936186 Travel / dust cap for 205x range batteries
- ATA004N USB-to-SMBus smart battery interface with “Y” USB/Battery cable.
- BL237A Connector Mounting Circuit Board
- EB397A Connector Board with Ideal Diode Circuit.
- MCL205VC Car Charger No description published.
Documents
About this part
NH3057QE34 Smart Lithium-Ion Battery: Capable of higher discharge rates than NH2057 smart battery packs, the NH3057QE34 battery pack incorporates the standard features that designers and engineers have come to rely on for safety and function, such as SMbus, a pull tab for easy removal and on-pack LCD display for relative SOC indication. With its’ 12A discharge capability, the NH3057QE34 is ideally suited as a small “hot-swap” battery to hold up the device for a short period while the main battery is charged. Inspired Energy's rechargeable smart lithium-ion battery packs can perform at -20°C for low temperature applications, as the low internal impedance enable the cells to deliver good capacity and discharge current. This Battery Complies with the following: EMC Directive, UKCA Directive, Battery Directive, RoHS3 & REACH Directives, and WEEE Directive. Approvals: CE FCC Part 15 Class B UKCA IEC 62133-2 with CB Report UL 62133-2 CAN/CSA-C22.2 No. 62133-2 Korean KC India BIS Japan PSE Features: SMbus Pull tab for easy removal On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance. NH3057QE34 Smart Li-ion battery customization options: • SHA-1 secure handshake • Custom label • Custom Firmware • Additional performance options for OEM applications The NH3057QE34 is our newest model, designed to outperform the previous NH2057ED34 model.
