- Nickel Metal Hydride
- Battery pack

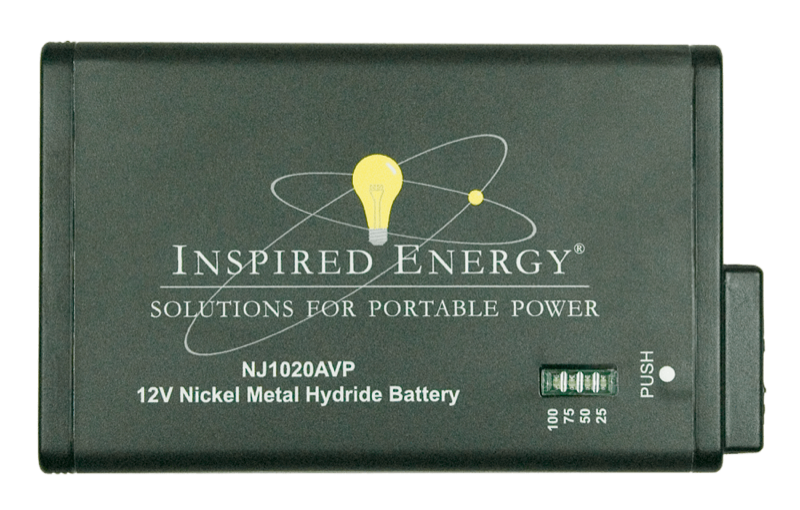

NJ1020
12 V smart NiMH battery
12 V 3.9 Ah NiMH battery pack.
- 12 V
- Nominal voltage
- 3.9 Ah
- Capacity
- 47 Wh
- Energy
- 3 A
- Max current
Specifications
| Nominal voltage | 12 V |
|---|---|
| Capacity | 3.9 Ah |
| Energy | 47 Wh |
| Maximum discharge current | 3 A |
| Chemistry | Nickel metal hydride |
| IP rating | None |
Specifications come from the Revision 4.1 datasheet. Confirm against the datasheet below before committing a design.
Accessories that fit
- 610005 Straight Connector - TE Part Number: 5787446-1
- 610007 90° Connector with Right-Hand Key - TE Part Number: 5787422-1
- 610018 90° Connector with Left-Hand Key - TE Part Number 5787428-1
- ATA004N USB-to-SMBus smart battery interface with “Y” USB/Battery cable.
- BL237A Connector Mounting Circuit Board
- EB397A Connector Board with Ideal Diode Circuit.
