- Nickel Metal Hydride
- Battery pack

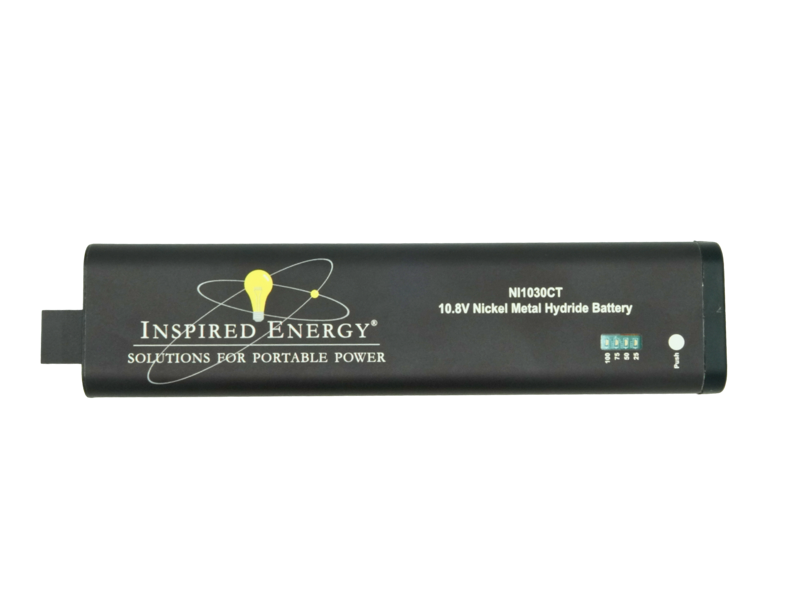

Ni1030CT
10.8 V smart NiMH battery
10.8 V 3.9 Ah NiMH battery pack.
- 10.8 V
- Nominal voltage
- 3.9 Ah
- Capacity
- 42 Wh
- Energy
- 3 A
- Max current
Nickel Metal Hydride
What the Ni1030CT brings to the device
Every line on this page traces to the current datasheet revision engineering approved. Nothing here is marketing copy about a generic pack.
Talk to an engineer →-
Compact, rugged case
215 x 52.8 x 19.3 mm, rectangular. Molded here, not imported.
Specifications
| Nominal voltage | 10.8 V |
|---|---|
| Capacity | 3.9 Ah |
| Energy | 42 Wh |
| Maximum discharge current | 3 A |
| Chemistry | Nickel metal hydride |
| Shape | Rectangular |
| Dimensions (in) | 8.5" x 2.1" x 0.8" |
| Dimensions (mm) | 215 x 52.8 x 19.3 |
| IP rating | None |
Specifications come from the Revision 5.0 datasheet. Confirm against the datasheet below before committing a design.
Stock numbers
| NSN (AMP 787415-1) | 6130-01-485-8709 |
|---|
Chargers for this pack
Accessories that fit
- 610005 Straight Connector - TE Part Number: 5787446-1
- 610007 90° Connector with Right-Hand Key - TE Part Number: 5787422-1
- 610018 90° Connector with Left-Hand Key - TE Part Number 5787428-1
- ATA004N USB-to-SMBus smart battery interface with “Y” USB/Battery cable.
- BL237A Connector Mounting Circuit Board
- EB397A Connector Board with Ideal Diode Circuit.
Documents
About this part
The NI1030CT is a rechargeable smart Nickel Metal Hydride battery pack built for OEM equipment that needs reliable, communicative portable power. Nine 4/3A cells in a 9-series configuration deliver 10.8V nominal and 3850mAh typical capacity, with a minimum of 3000mAh at a 3A discharge rate. Fully SMBus and SBDS Revision 1.0 compliant, the pack manages its own charging by requesting the appropriate voltage and current from any SMBus Level II or Level III smart charger. An integrated fuel gauge reports state of charge, remaining capacity, run time, cycle count, and temperature directly to the host, applying continuous compensation for cell non-linearity and environmental conditions so runtime predictions stay meaningful over the life of the pack. Four on-pack LEDs with push-button activation give operators an at-a-glance capacity reading without powering up the host device. Key specifications Nominal voltage: 10.8V Typical capacity: 3850mAh (3500mAh minimum at 0.2C) Chemistry: Nickel Metal Hydride, 9S configuration Maximum continuous discharge: 3A Discharge temperature range: 0°C to +50°C Charge temperature range: 0°C to +40°C at 3A rate Communication: SMBus / SBDS Rev 1.0 Weight: 510g ±20g Dimensions: 214.50mm × 52.50mm × 19.00mm (max, including label) Mating connector: AMP 787415-1 NSN 6130-01-485-8709 To place an order or for pricing, please contact us.
