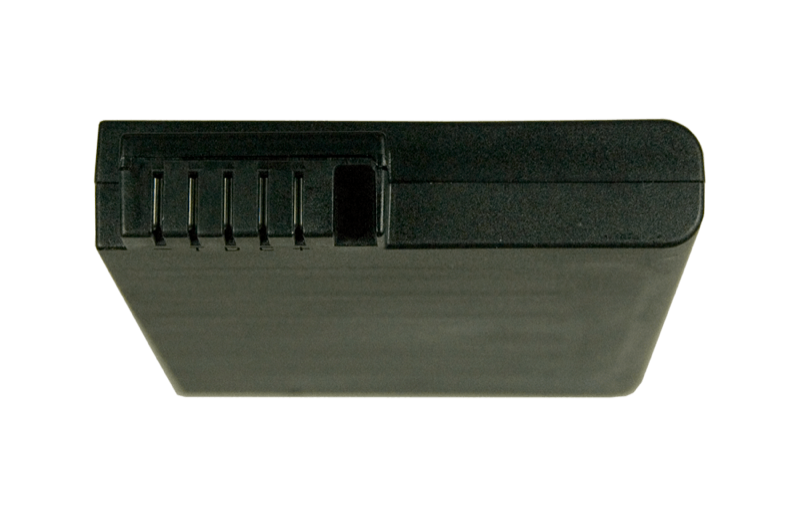

Ni2020HD24
10.8 V smart lithium-ion battery
10.8 V 7.2 Ah smart lithium-ion battery pack.
- 10.8 V
- Nominal voltage
- 7.2 Ah
- Capacity
- 78 Wh
- Energy
- 6 A
- Max current
Limited availability. This part is quoted by sales rather than sold from stock. Ask about availability.
N-Series
What the Ni2020HD24 brings to the device
Every line on this page traces to the current datasheet revision engineering approved. Nothing here is marketing copy about a generic pack.
Talk to an engineer →-
Cell pack
9 x 18650 lithium-ion cells in a 3S3P array, matched and welded in Newberry, Florida.
-
Compact, rugged case
149.1 x 89 x 20.3 mm, rectangular. Molded here, not imported.
Specifications
| Nominal voltage | 10.8 V |
|---|---|
| Capacity | 7.2 Ah |
| Energy | 78 Wh |
| Maximum discharge current | 6 A |
| Rated power | 45 W |
| Chemistry | Lithium-ion |
| Cell | 9 x 18650 |
| Cell array | 3S3P |
| Shape | Rectangular |
| Dimensions (in) | 5.9" x 3.5" x 0.8" |
| Dimensions (mm) | 149.1 x 89 x 20.3 |
| Equivalent lithium content | 6.9 g |
| IP rating | None |
| Mating connector | 5-Pin Standard Connector |
| Cavity size | 21mm x 90 mm cross section |
Specifications come from the Revision 4.9 datasheet. Confirm against the datasheet below before committing a design.
Documents
About this part
Ni2020HD24 Smart Lithium-Ion Battery: The Ni2020 is ideal for low temperature applications as the low internal impedance enables the cells to deliver good capacity and discharge current. The Ni2020 can perform as low as -30°C (note, in cases of low temperature applications, we strongly recommend testing in your specific application). Features: • SMbus • Pull tab for easy removal • On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance. Ni2020HD24 Smart Li-ion battery customization options: • SHA-1 secure handshake • Custom label • Custom Firmware • Additional performance options for OEM applications N-series chargers are recommended for these batteries. Need additional power and capacity? Check out our Ni2020ED29 smart battery.
