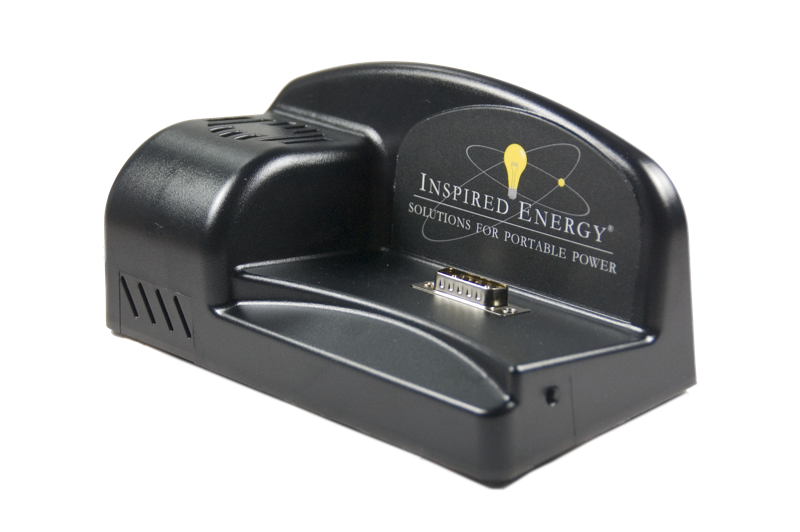

PH1000CAL
SMBus battery charger
The PH1000CAL SMbus desktop battery charger and calibrator is a standalone unit providing charge to the Inspired Energy P-series battery products.
- 0 packs
- Charges
- 3
- Cord regions
P-Series
What the PH1000CAL brings to the device
Every line on this page traces to the current datasheet revision engineering approved. Nothing here is marketing copy about a generic pack.
Talk to an engineer →-
Charge + Calibrate
Charges the pack and recalibrates the fuel gauge so the reported capacity stays honest.
-
Universal mains input
110 to 240 VAC, 50 to 60 Hz, cords for US, EU, UK.
-
Approvals
UL, REACH, RoHS3.
Specifications
| Functions | Charge, Calibrate |
|---|---|
| Mains input | 110-240 VAC, 50-60 Hz |
| Power supply included | Yes |
| AC cord options | US, EU, UK |
| Mating connector | 7-Pin D-Sub |
| Dimensions (in) | 7" x 3.6" x 3.5" |
| Dimensions (mm) | 180 x 92 x 88 |
| Approvals | UL, REACH, RoHS3 |
Specifications come from the current datasheet. Confirm against the datasheet below before committing a design.
Documents
About this part
The PH1000CAL SMbus desktop battery charger and calibrator is a standalone unit providing charge to the Inspired Energy P-series battery products. This is a unit used to adjust the battery state of charge to 25% for shipping or storage when the battery is inserted. While it also includes a full cycle re-calibration function that will leave the battery fully charged, it is not intended to be used to fully charge a battery. Complete with a universal power supply (110VAC-240VAC, 50-60HZ) for global compatibility. AC mains cord options available, please specify your country application when ordering. Compliant to the current environmental standards for REACH/RoHS3. CE/FCC & customs Declarations are available below. To place an order or for additional quantity pricing, please contact us.
