- P-Series
- Charger

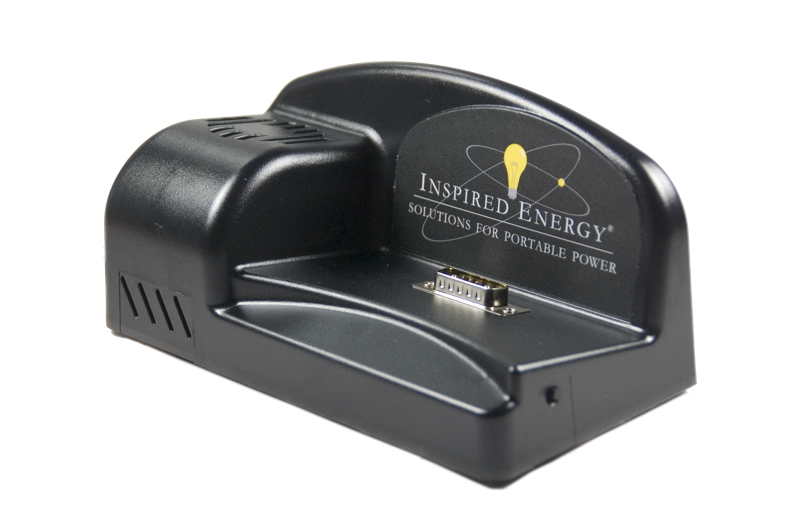

PM1000
SMBus battery charger
The PM1000 SMbus desktop battery charger and calibrator is a standalone unit providing charge to the Inspired Energy P-series battery products.
- 0 packs
- Charges
- 3
- Cord regions
P-Series
What the PM1000 brings to the device
Every line on this page traces to the current datasheet revision engineering approved. Nothing here is marketing copy about a generic pack.
Talk to an engineer →-
Charge + Calibrate
Charges the pack and recalibrates the fuel gauge so the reported capacity stays honest.
-
Universal mains input
110 to 240 VAC, 50 to 60 Hz, cords for US, EU, UK.
-
Approvals
REACH, RoHS3.
Specifications
| Functions | Charge, Calibrate |
|---|---|
| Mains input | 110-240 VAC, 50-60 Hz |
| Power supply included | Yes |
| AC cord options | US, EU, UK |
| Mating connector | 7-Pin D-Sub |
| Dimensions (in) | 7" x 3.6" x 3.5" |
| Dimensions (mm) | 180 x 92 x 88 |
| Approvals | REACH, RoHS3 |
Specifications come from the current datasheet. Confirm against the datasheet below before committing a design.
Documents
Datasheet on request. The current revision for this part is issued by engineering. Ask for it and it comes with the quote.
About this part
The PM1000 SMbus desktop battery charger and calibrator is a standalone unit providing charge to the Inspired Energy P-series battery products. Complete with a medical grade universal power supply (110VAC-240VAC, 50-60HZ) for global compatibility. AC mains cord options available, please specify your country application when ordering. Compliant to the current environmental standards for REACH/RoHS3. CE/FCC & customs Declarations are available below. To place an order or for additional quantity pricing, please contact us.
