- S-Series
- Battery pack

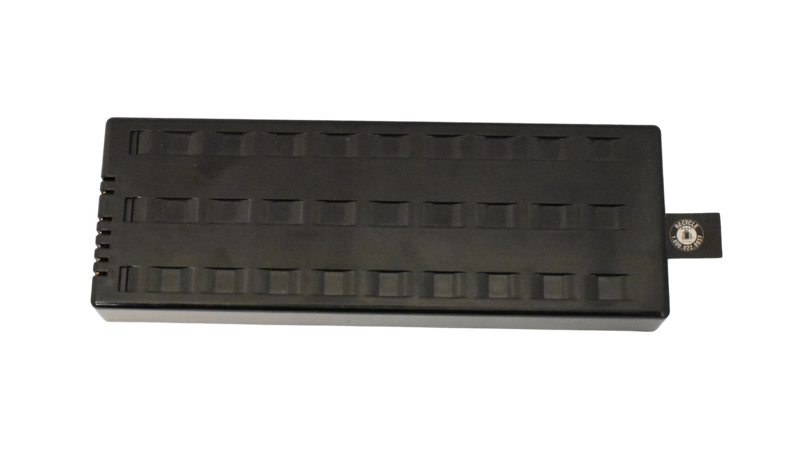

SJ3008HD29
18 V smart lithium-ion battery
18 V 5.2 Ah smart lithium-ion battery pack.
- 18 V
- Nominal voltage
- 5.2 Ah
- Capacity
- 94 Wh
- Energy
- 20 A
- Max current
S-Series
What the SJ3008HD29 brings to the device
Every line on this page traces to the current datasheet revision engineering approved. Nothing here is marketing copy about a generic pack.
Talk to an engineer →-
On-pack fuel gauge
Push button 4-bar LED. Charge state at a glance, no host required.
-
Cell pack
10 x 18650 lithium-ion cells in a 5S2P array, matched and welded in Newberry, Florida.
-
Compact, rugged case
207.3 x 74.4 x 26.9 mm, rectangular. Molded here, not imported.
Specifications
| Nominal voltage | 18 V |
|---|---|
| Capacity | 5.2 Ah |
| Energy | 94 Wh |
| Maximum discharge current | 20 A |
| Rated power | 275 W |
| Chemistry | Lithium-ion |
| Cell | 10 x 18650 |
| Cell array | 5S2P |
| Shape | Rectangular |
| Dimensions (in) | 8.16" x 2.93" x 1.06" |
| Dimensions (mm) | 207.3 x 74.4 x 26.9 |
| Fuel gauge | Push button 4-bar LED |
| IP rating | None |
| Mating connector | Inspired Energy P/N 619095 |
Specifications come from the Revision 1.0 datasheet. Confirm against the datasheet below before committing a design.
Chargers for this pack
Documents
About this part
No description published.
