- Charger
CH1010EM
2-bay battery charger

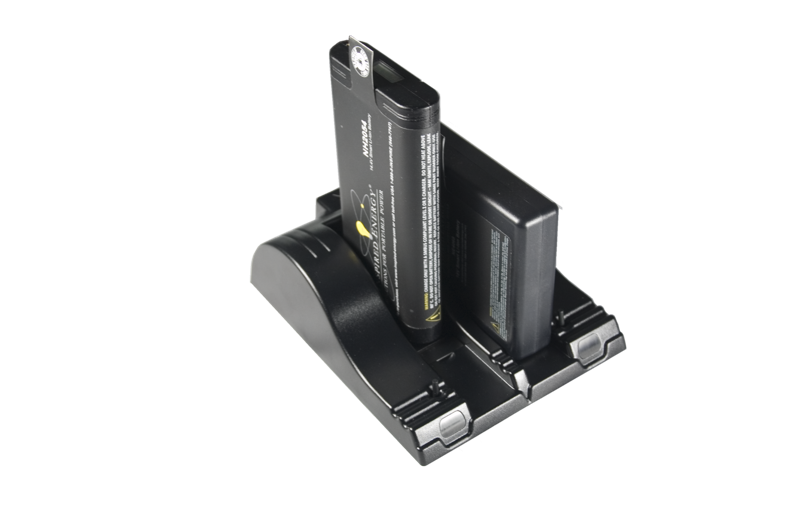

The CH1010EM SMbus 2-bay enhanced desktop charger/calibrator/recalibrator is a standalone unit built for Inspired Energy N & R-series battery products.
- 2 bays
- Capacity
- 2 packs
- Charges
- 3
- Cord regions
Charger
What the CH1010EM brings to the device
Every line on this page traces to the current datasheet revision engineering approved. Nothing here is marketing copy about a generic pack.
Talk to an engineer →-
2-bay charging
Charges 2 Inspired Energy packs. See the compatibility list below.
-
Charge + Calibrate
Charges the pack and recalibrates the fuel gauge so the reported capacity stays honest.
-
Universal mains input
110 to 240 VAC, 50 to 60 Hz, cords for US, EU, UK.
-
Approvals
UL, CE, REACH, RoHS3.
Specifications
| Bays | 2 |
|---|---|
| Functions | Charge, Calibrate |
| Mains input | 110-240 VAC, 50-60 Hz |
| Power supply included | Yes |
| AC cord options | US, EU, UK |
| Mating connector | 5-Pin Standard Connector |
| Dimensions (in) | 7" x 5" x 2.25" |
| Dimensions (mm) | 180 x 122 x 58 |
| Approvals | UL, CE, REACH, RoHS3 |
Specifications come from the current datasheet. Confirm against the datasheet below before committing a design.
Accessories that fit
Packs this works with
Documents
About this part
The CH1010EM SMbus 2-bay enhanced desktop charger/calibrator/recalibrator is a standalone unit built for Inspired Energy N & R-series battery products. Full Charge Adjust SOC to 30% for shipping and storage Recalibration Complete with a universal power supply (110VAC-240VAC, 50-60HZ) for global compatibility. AC mains cord options available, please specify your country application when ordering. Compliant to the current environmental standards for REACH/RoHS3. Declarations are available below. UL Listed & CE Compliant To place an order or for additional quantity pricing, please contact us.
