- N-Series
- Battery pack
ND3054HD30
14.4 V smart lithium-ion battery

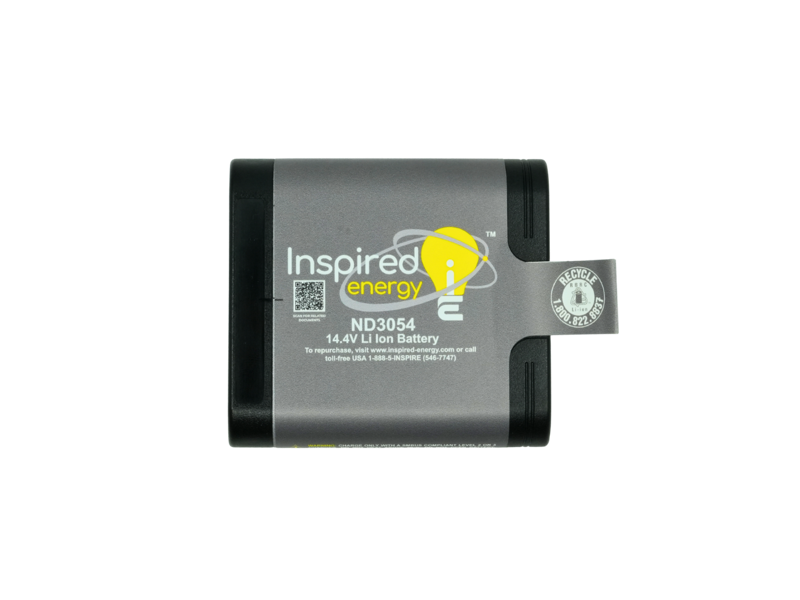

14.4 V 3 Ah smart lithium-ion battery pack.
- 14.4 V
- Nominal voltage
- 3 Ah
- Capacity
- 43 Wh
- Energy
- 10 A
- Max current
N-Series
What the ND3054HD30 brings to the device
Every line on this page traces to the current datasheet revision engineering approved. Nothing here is marketing copy about a generic pack.
Talk to an engineer →-
Cell pack
4 x 18650 lithium-ion cells in a 4S1P array, matched and welded in Newberry, Florida.
-
Compact, rugged case
86.4 x 78.7 x 23.02 mm, square. Molded here, not imported.
Specifications
| Nominal voltage | 14.4 V |
|---|---|
| Capacity | 3 Ah |
| Energy | 43 Wh |
| Maximum discharge current | 10 A |
| Rated power | 100 W |
| Chemistry | Lithium-ion |
| Cell | 4 x 18650 |
| Cell array | 4S1P |
| Shape | Square |
| Dimensions (in) | 3.4" x 3.1" x 91" |
| Dimensions (mm) | 86.4 x 78.7 x 23.02 |
| Equivalent lithium content | 4 g |
| IP rating | None |
| Mating connector | 5-Pin Standard Connector |
Specifications come from the Revision 1.0 datasheet. Confirm against the datasheet below before committing a design.
Chargers for this pack
- CH1000 Charger, charge + calibrate
- CH1000CAL Charger, charge + calibrate
- CH1010 2 bay, charge + calibrate
- CH1010EM 2 bay, charge + calibrate
- CH1111 4 bay, charge + calibrate
- CH1111CAL Charger, charge + calibrate
- CH4000 Charger, charge
- CH4040 2 bay, charge
- CH4444 4 bay, charge
- CH5000 Charger, charge + calibrate
- CH5050 2 bay, charge + calibrate
- CH5050CAL 2 bay, charge + calibrate
- CH5555 4 bay, charge + calibrate
- CH5555CAL 4 bay, charge + calibrate
- CH6555 6 bay, charge + calibrate
- CH6555CAL 6 bay, charge + calibrate
- CH7000 Charger, charge
- CH7070 2 bay, charge
- CH7100 Charger, charge
- CH7171 Charger, charge
- CR12 12 bay, charge
Accessories that fit
- 610005 Straight Connector - TE Part Number: 5787446-1
- 610007 90° Connector with Right-Hand Key - TE Part Number: 5787422-1
- 610018 90° Connector with Left-Hand Key - TE Part Number 5787428-1
- 629028 3', 5-conductor straight cable for 204x, 205x, 304x & 305x range batteries.
- 629030 3', 2-Conductor coiled cable
- 936186 Travel / dust cap for 205x range batteries
- ATA004N USB-to-SMBus smart battery interface with “Y” USB/Battery cable.
Documents
About this part
ND3054HD30 Smart Lithium-Ion Battery: The ND3054HD30 is ideal for low temperature applications as the low internal impedance enables the cells to deliver good capacity and discharge current. The ND3054HD30 can perform as low as -30°C (Note, in cases of low temperature applications, we strongly recommend testing in your specific application). Also, with its 10A discharge capability, the ND3054HD30 is ideally suited as a small “hot-swap” battery to hold up the device for a short period while the main battery is charged. Features: • SMbus • Pull tab for easy removal • On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance. ND3054HD30 Smart Li-ion battery customization options: • SHA-1 secure handshake • Custom label • Custom Firmware • Additional performance options for OEM applications N-series chargers are recommended for these batteries.
