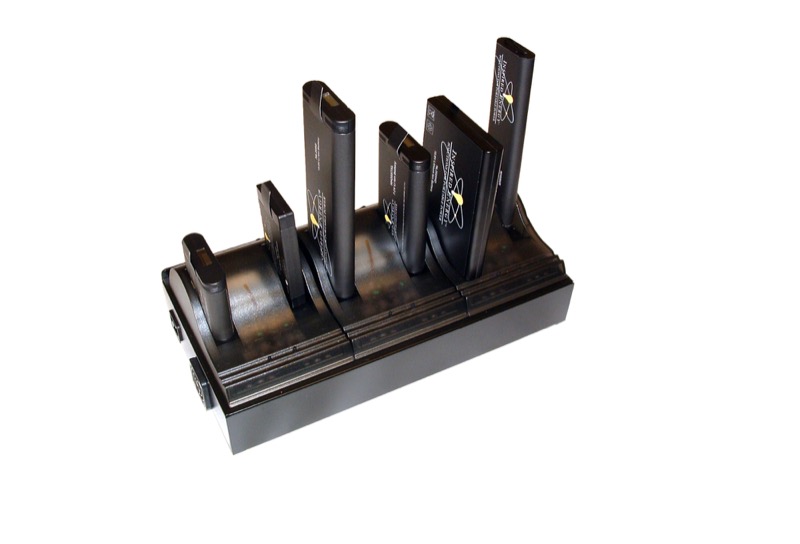

CH6555CAL
6-bay battery charger
The CH6555 6-bay, simultaneous smart SMbus charger and calibrator is a standalone unit which charges (6) Inspired Energy batteries at the same time, reducing cycle time for multi-battery applications.
- 6 bays
- Capacity
- 3 packs
- Charges
- 3
- Cord regions
N-Series
What the CH6555CAL brings to the device
Every line on this page traces to the current datasheet revision engineering approved. Nothing here is marketing copy about a generic pack.
Talk to an engineer →-
6-bay charging
Charges 3 Inspired Energy packs. See the compatibility list below.
-
Charge + Calibrate
Charges the pack and recalibrates the fuel gauge so the reported capacity stays honest.
-
Universal mains input
110 to 240 VAC, 50 to 60 Hz, cords for US, EU, UK.
-
Approvals
UL, CE, REACH, RoHS3.
Specifications
| Bays | 6 |
|---|---|
| Functions | Charge, Calibrate |
| Mains input | 110-240 VAC, 50-60 Hz |
| AC cord options | US, EU, UK |
| Mating connector | 5-Pin Standard Connector |
| Dimensions (in) | 15.75" x 8" x 5" |
| Dimensions (mm) | 400 x 200 x 126 |
| Not compatible with | P & Nx4xxx Series batteries |
| Approvals | UL, CE, REACH, RoHS3 |
Specifications come from the current datasheet. Confirm against the datasheet below before committing a design.
Accessories that fit
Packs this works with
Documents
About this part
The CH6555 6-bay, simultaneous smart SMbus charger and calibrator is a standalone unit which charges (6) Inspired Energy batteries at the same time, reducing cycle time for multi-battery applications. This is a unit used to adjust the battery state of charge to 25% for shipping or storage when the battery is inserted. While it also includes a full cycle re-calibration function that will leave the battery fully charged, it is not intended to be used to fully charge a battery. Variants are available for use in North America (CH6555A), Europe (CH6555E) or the UK (CH6555U) with a universal power input (110VAC-240VAC, 50-60HZ) for global compatibility. Compliant to the current environmental standards for REACH/RoHS3. Declarations are available below. UL Listed, FCC & CE Compliant The CH6555 is not compatible with P & Nx4xxx Series batteries To place an order or for additional quantity pricing, please contact us.
