- N-Series
- Battery pack
ND2034QE34
14.4 V smart lithium-ion battery

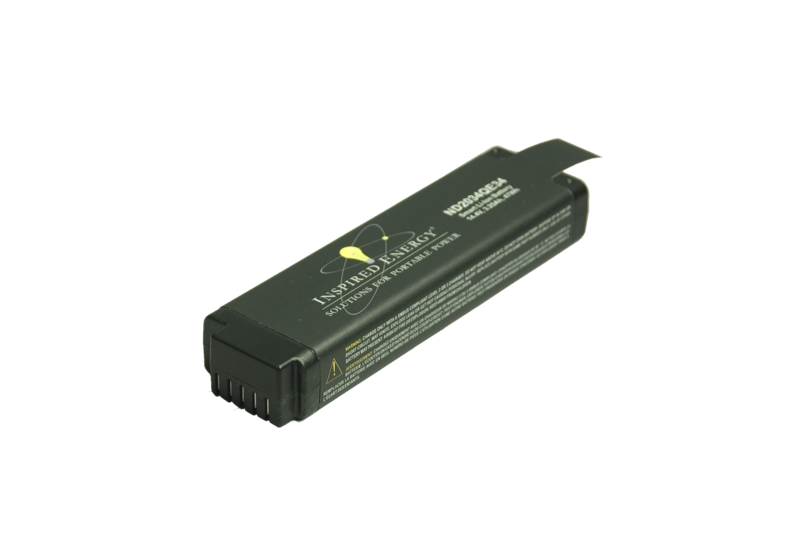

14.4 V 3.4 Ah smart lithium-ion battery pack.
- 14.4 V
- Nominal voltage
- 3.4 Ah
- Capacity
- 49 Wh
- Energy
- 4 A
- Max current
N-Series
What the ND2034QE34 brings to the device
Every line on this page traces to the current datasheet revision engineering approved. Nothing here is marketing copy about a generic pack.
Talk to an engineer →-
On-pack fuel gauge
Always on 5-Bar LCD. Charge state at a glance, no host required.
-
Cell pack
4 x 18650 lithium-ion cells in a 4S1P array, matched and welded in Newberry, Florida.
-
Approvals
UL. Testing summary in the documents below.
Specifications
| Nominal voltage | 14.4 V |
|---|---|
| Capacity | 3.4 Ah |
| Energy | 49 Wh |
| Maximum discharge current | 4 A |
| Rated power | 40 W |
| Chemistry | Lithium-ion |
| Cell | 4 x 18650 |
| Cell array | 4S1P |
| Shape | Rectangular |
| Dimensions (in) | 6" x 1.7" x 0.9" |
| Dimensions (mm) | 153 x 42 x 23 |
| Equivalent lithium content | 4 g |
| Fuel gauge | Always on 5-Bar LCD |
| IP rating | None |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
| Cavity size | 24mm x 43mm cross-section |
| Approvals | UL |
Specifications come from the Revision 2.2 datasheet. Confirm against the datasheet below before committing a design.
Chargers for this pack
- CH1000 Charger, charge + calibrate
- CH1000CAL Charger, charge + calibrate
- CH1010 2 bay, charge + calibrate
- CH5555 4 bay, charge + calibrate
- CH6555 6 bay, charge + calibrate
- CH7000 Charger, charge
- CH7171 Charger, charge
- Embedded Charger Boards Charger, charge
- CH1111 4 bay, charge + calibrate
- CH1111CAL Charger, charge + calibrate
- CH4000 Charger, charge
- CH4040 2 bay, charge
- CH4444 4 bay, charge
- CH5000 Charger, charge + calibrate
- CH5050 2 bay, charge + calibrate
- CH7070 2 bay, charge
- CH7100 Charger, charge
Accessories that fit
- 610005 Straight Connector - TE Part Number: 5787446-1
- 610007 90° Connector with Right-Hand Key - TE Part Number: 5787422-1
- 610018 90° Connector with Left-Hand Key - TE Part Number 5787428-1
- 629080 3' 5-Way cable
- 936188 Travel / dust cap for 203x range batteries
- ATA004N USB-to-SMBus smart battery interface with “Y” USB/Battery cable.
- BL237A Connector Mounting Circuit Board
- EB397A Connector Board with Ideal Diode Circuit.
Documents
About this part
ND2034QE34 Smart Lithium-Ion Battery: The ND2034QE34 is the IEC, UL, CSA 62133-2 approved model of the ND2034HD34 ( 4S1P ) 14.4V, 4A smart lithium ion battery incorporates the standard features that designers and engineers have come to rely on for safety and function, such as SMbus, a pull tab for easy removal and on-pack LCD display for relative SOC indication. The Inspired Energy ND203x range of rechargeable smart Li-Ion battery packs are ideally designed for use in handheld devices with a variety of design and performance specifications: ND2034ED34 ( 4S1P ) 14.4V, 8A ND3034HD29 ( 4S1P ) 14.4V, 10A (Discharge -30°C to +60°C) ND2037HD34 (2S2P) 7.2V, 8A ND2037QE34 (2S2P) 7.2V, 8A. IEC, UL & CSA 62133-2 approved ND3037HD29 (2S2P) 7.2V, 10A (Discharge -30°C to +60°C). Features: • SMbus • Pull tab for easy removal • On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance. ND2034QE34 Smart Li-ion battery customization options: • SHA-1 secure handshake • Custom label • Custom Firmware • Additional performance options for OEM applications N-series chargers are recommended for these batteries. Need IEC, UL, CSA 62133-2, KC, BIS PSE approved? Consider the ND2037QE34 smart battery The ND2034QE34 is our newest model, designed to outperform the previous ND2034HD29 & ND2034HD31 models.
