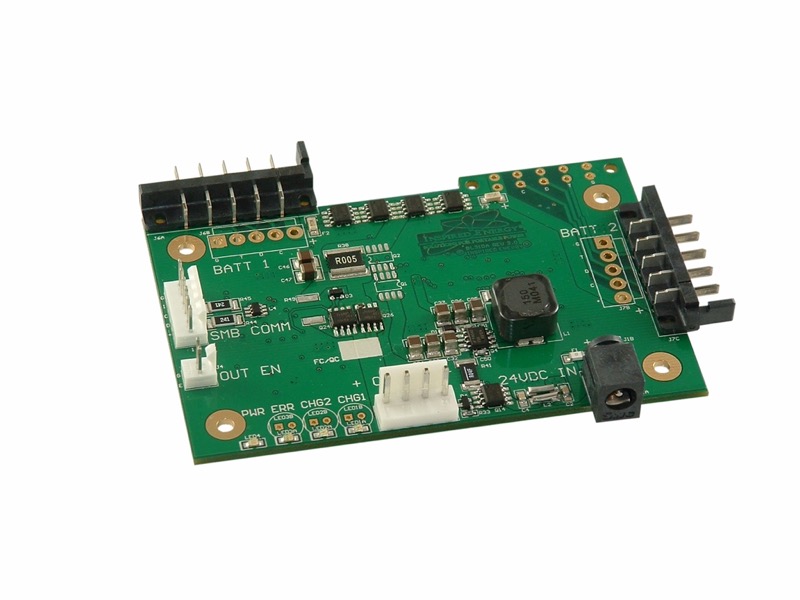

Embedded Charger Boards
SMBus battery charger
Inspired Energy charger boards are designed for use as smart SMBus charger reference designs and for use as embedded chargers within a portable electronic device.
- 27 packs
- Charges
- 1
- Cord regions
N-Series
What the Embedded Charger Boards brings to the device
Every line on this page traces to the current datasheet revision engineering approved. Nothing here is marketing copy about a generic pack.
Talk to an engineer →-
Charge
Charges Inspired Energy smart packs from mains power.
Specifications
| Functions | Charge |
|---|---|
| AC cord options | US |
Specifications come from the current datasheet. Confirm against the datasheet below before committing a design.
Packs this works with
- ND2017QE34 7.2 V, 6.8 Ah
- ND2034QE34 14.4 V, 3.4 Ah
- ND2054HD34 14.4 V, 3.4 Ah
- NH2034QE34 14.4 V, 6.8 Ah
- NL2020ED22 10.8 V, 8.8 Ah
- NL2024ED22 14.4 V, 6.6 Ah
- NL2054HD22 14.4 V, 6.6 Ah
- Ni2020ED29 10.8 V, 8.4 Ah
- Ni2020HD29 10.8 V, 8.4 Ah
- Ni2040ED29 10.8 V, 8.4 Ah
- Ni2040HD29 10.8 V, 8.4 Ah
- Ni2040QE29 10.8 V, 8.4 Ah
- Ni3020HD29 10.8 V, 8.4 Ah
- Ni3020QE29 10.8 V, 8.4 Ah
- PH3054HD29 14.4 V, 5.6 Ah
- PH3054QE29 14.4 V, 5.6 Ah
- PH3059HD29 28.8 V, 2.8 Ah
- PH3059QE29 28.8 V, 2.8 Ah
- RH2024HD34 14.4 V, 6.8 Ah
- RH2024QE34 14.4 V, 6.8 Ah
- RH2044HD34 14.4 V, 6.8 Ah
- RH2054HD34 14.4 V, 6.8 Ah
- RH3024HD34 14.4 V, 6.8 Ah
- RH3024QE34 14.4 V, 6.8 Ah
- Ri2050HD29 10.8 V, 8.4 Ah
- Ri3020HD29 10.8 V, 8.4 Ah
- Ri3020QE29 10.8 V, 8.4 Ah
Documents
Datasheet on request. The current revision for this part is issued by engineering. Ask for it and it comes with the quote.
About this part
Inspired Energy charger boards are designed for use as smart SMBus charger reference designs and for use as embedded chargers within a portable electronic device. We offer embeddable charger solutions with a variety of options and welcome custom projects tailored to support your needs. Part number Description Vin Nom BattV Vo Dimensions EB330A Single Battery Charger Board, N-series (3.6 to 14.4V battery). 24VDC, 60W input. Battery voltage output. 24VDC 3.6 to 14.4V Batt ~2.34 x 3 x 0.6" EB343A Single Battery Charger Board, N-series (3.6 to 14.4V battery). 24VDC, 60W input. 24VDC input voltage passes thru when present. 24VDC 3.6 to 14.4V Batt or Vin EB335A Single Battery Charger Board, N-series (3.6 to 14.4V battery). 10-24VDC, 60W input. The board will pass through either the battery voltage or the input DC voltage; whichever is higher. 10-24VDC 3.6 to 14.4V Batt or Vin EB478A Single Battery Charger Board, N-series (3.6 to 18V battery). 24-26VDC, 60W input. Input voltage passes thru when present. 24-26VDC 3.6 to 18V Batt or Vin EB488A Single Battery Charger Board, N-series (3.6 to 18V battery). 10-26VDC, 60W input. The board will pass through either the battery voltage or the input DC voltage; whichever is higher. 10-26VDC 3.6 to 18V Batt or Vin ~2.34 x 3 x 0.6" EB499A Single Battery Charger Board, N-series (3.6 to 14.4V battery). 15-24VDC, 60W input. The board will pass through either the battery voltage or the input DC voltage; whichever is higher. 15-24VDC 3.6 to 18V Batt or Vin ~1.96 x 2.36 x 0.45" EB486A Single Battery Charger Board, P-Series (3.6 to 28.8V battery). 10-40VDC, 60W input. 10-40VDC 3.6 to 28.8V Batt or Vin ~2.75 x 5.25 x 0.6" EB310A Dual Battery Charger Board, N-series (3.6 to 14.4V battery). 20-24VDC, 60W input. The output will therefore vary from the battery charge voltage down to the battery cutoff voltage. Note: if both batteries are removed there will be no output. 20-24VDC 3.6 to 14.4V Batt ~2.65 x 4.05 x 0.6" EB325A Dual Battery Charger Board, N-series (3.6 to 14.4V battery). 20-24VDC, 60W input. 24VDC input passes thru when present, if battery not present for output. 20-24VDC 3.6 to 14.4V Batt or Vin Please This email address is being protected from spambots. You need JavaScript enabled to view it. for further information.
