- N-Series
- Battery pack
NL2054HD34
14.4 V smart lithium-ion battery

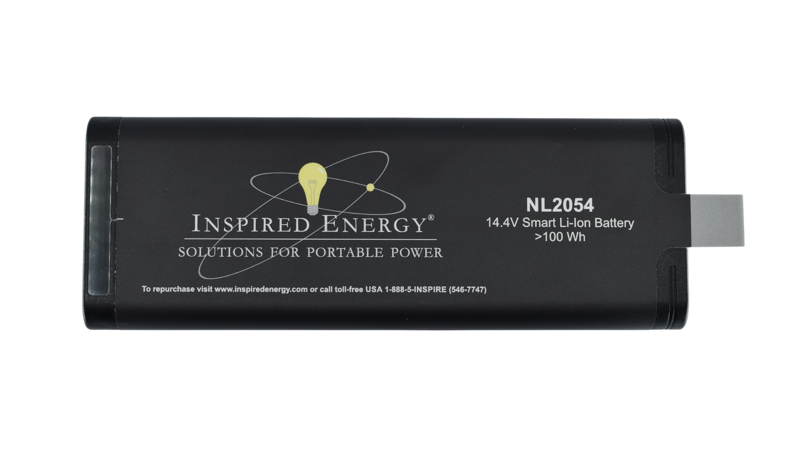

14.4 V 10.2 Ah smart lithium-ion battery pack.
- 14.4 V
- Nominal voltage
- 10.2 Ah
- Capacity
- 147 Wh
- Energy
- 8 A
- Max current
N-Series
What the NL2054HD34 brings to the device
Every line on this page traces to the current datasheet revision engineering approved. Nothing here is marketing copy about a generic pack.
Talk to an engineer →-
Cell pack
12 x 18650 lithium-ion cells in a 4S3P array, matched and welded in Newberry, Florida.
-
Compact, rugged case
215.9 x 78.7 x 22.86 mm, rectangular. Molded here, not imported.
Specifications
| Nominal voltage | 14.4 V |
|---|---|
| Capacity | 10.2 Ah |
| Energy | 147 Wh |
| Maximum discharge current | 8 A |
| Rated power | 80 W |
| Chemistry | Lithium-ion |
| Cell | 12 x 18650 |
| Cell array | 4S3P |
| Shape | Rectangular |
| Dimensions (in) | 8.5" x 3.1" x 0.9" |
| Dimensions (mm) | 215.9 x 78.7 x 22.86 |
| Equivalent lithium content | 12 g |
| IP rating | None |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
Specifications come from the Revision 1.0.2 datasheet. Confirm against the datasheet below before committing a design.
