- N-Series
- Battery pack
NL2054QE34
14.4 V smart lithium-ion battery

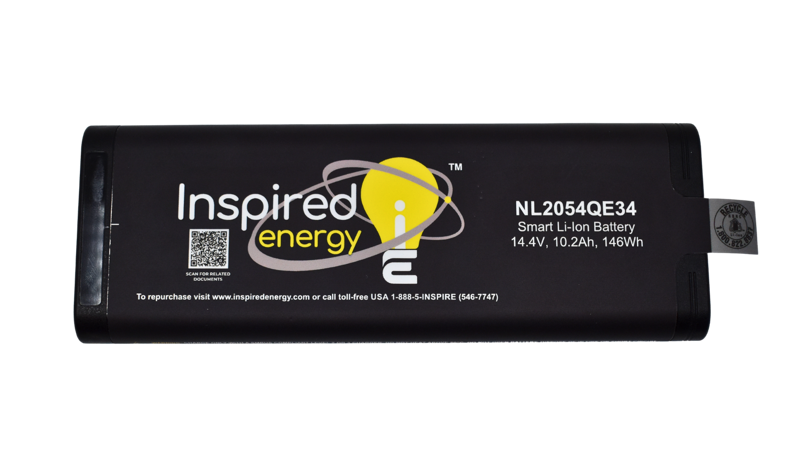

14.4 V 10.2 Ah smart lithium-ion battery pack.
- 14.4 V
- Nominal voltage
- 10.2 Ah
- Capacity
- 147 Wh
- Energy
- 8 A
- Max current
N-Series
What the NL2054QE34 brings to the device
Every line on this page traces to the current datasheet revision engineering approved. Nothing here is marketing copy about a generic pack.
Talk to an engineer →-
On-pack fuel gauge
Always on 5-Bar LCD. Charge state at a glance, no host required.
-
Cell pack
12 x 18650 lithium-ion cells in a 4S3P array, matched and welded in Newberry, Florida.
-
Approvals
UL.
Specifications
| Nominal voltage | 14.4 V |
|---|---|
| Capacity | 10.2 Ah |
| Energy | 147 Wh |
| Maximum discharge current | 8 A |
| Rated power | 80 W |
| Chemistry | Lithium-ion |
| Cell | 12 x 18650 |
| Cell array | 4S3P |
| Shape | Rectangular |
| Dimensions (in) | 8.5" x 3.1" x 0.9" |
| Dimensions (mm) | 215.9 x 78.7 x 22.86 |
| Equivalent lithium content | 12 g |
| Fuel gauge | Always on 5-Bar LCD |
| IP rating | None |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
| Approvals | UL |
Specifications come from the Revision 1.0.1 datasheet. Confirm against the datasheet below before committing a design.
Chargers for this pack
- CH1000 Charger, charge + calibrate
- CH1000CAL Charger, charge + calibrate
- CH1010 2 bay, charge + calibrate
- CH1111 4 bay, charge + calibrate
- CH1111CAL Charger, charge + calibrate
- CH4000 Charger, charge
- CH4040 2 bay, charge
- CH4444 4 bay, charge
- CH5000 Charger, charge + calibrate
- CH5050 2 bay, charge + calibrate
- CH5050CAL 2 bay, charge + calibrate
- CH5555 4 bay, charge + calibrate
- CH6555 6 bay, charge + calibrate
- CH7000 Charger, charge
- CH7070 2 bay, charge
- CH7100 Charger, charge
- CH7171 Charger, charge
Accessories that fit
- 610005 Straight Connector - TE Part Number: 5787446-1
- 610007 90° Connector with Right-Hand Key - TE Part Number: 5787422-1
- 610018 90° Connector with Left-Hand Key - TE Part Number 5787428-1
- 629028 3', 5-conductor straight cable for 204x, 205x, 304x & 305x range batteries.
- 629030 3', 2-Conductor coiled cable
- 936186 Travel / dust cap for 205x range batteries
- ATA004N USB-to-SMBus smart battery interface with “Y” USB/Battery cable.
- BL237A Connector Mounting Circuit Board
- EB397A Connector Board with Ideal Diode Circuit.
Documents
About this part
NL2054QE34 — Rechargeable Smart Lithium-Ion Battery Pack The Inspired Energy NL2054QE34 is a rugged, intelligent 14.4V / 10.2Ah lithium-ion smart battery designed for high-reliability portable devices. Built with twelve 18650 cells in a 4S3P configuration, it delivers long runtime, high energy density, and accurate fuel gauging. An onboard fuel guage continuously measures voltage, current, temperature, and state-of-charge, communicating through SMBus (Smart Battery Data Specification v1.1 compliant) for seamless integration with host devices and smart chargers. The always-on five-segment LCD provides instant state-of-charge visibility. Multiple layers of electronic protection safeguard against over-charge, over-discharge, over-current, short-circuit, and temperature extremes. A passive safety fuse adds an additional layer of protection. The NL2054QE34 meets major global safety and transportation certifications, including IEC 62133-2, UL/CSA 62133-2, CE, FCC, and UN38.3. Key Features 14.4V nominal / 10.2Ah capacity SMBus smart battery communication Always-on 5-segment LCD fuel gauge Wide operating temperature range (charge 0°C to +45°C / discharge –20°C to +60°C) Advanced electronic and passive safety protection Ideal for portable medical devices, robotics, test equipment, and rugged industrial applications. N-series chargers are recommended for these batteries.
