- N-Series
- Battery pack

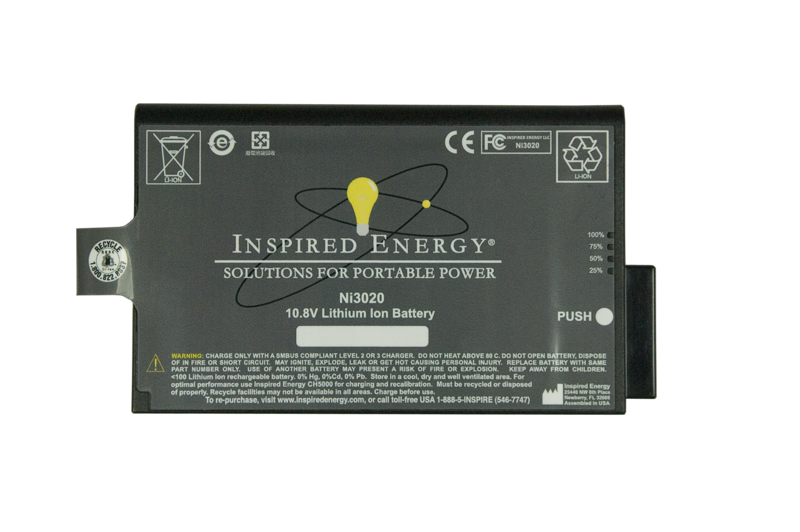

Ni3020QE29
10.8 V smart lithium-ion battery
10.8 V 8.1 Ah smart lithium-ion battery pack.
- 10.8 V
- Nominal voltage
- 8.4 Ah
- Capacity
- 90 Wh
- Energy
- 10 A
- Max current
N-Series
What the Ni3020QE29 brings to the device
Every line on this page traces to the current datasheet revision engineering approved. Nothing here is marketing copy about a generic pack.
Talk to an engineer →-
On-pack fuel gauge
Push button 4-bar LED. Charge state at a glance, no host required.
-
Cell pack
9 x 18650 lithium-ion cells in a 3S3P array, matched and welded in Newberry, Florida.
-
Approvals
UL. Testing summary in the documents below.
Specifications
| Nominal voltage | 10.8 V |
|---|---|
| Capacity | 8.4 Ah |
| Energy | 90 Wh |
| Maximum discharge current | 10 A |
| Rated power | 75 W |
| Chemistry | Lithium-ion |
| Cell | 9 x 18650 |
| Cell array | 3S3P |
| Shape | Rectangular |
| Dimensions (in) | 5.9" x 3.5" x 0.8" |
| Dimensions (mm) | 149.1 x 89 x 20.3 |
| Equivalent lithium content | 8 g |
| Fuel gauge | Push button 4-bar LED |
| IP rating | None |
| Mating connector | 5-Pin Standard Connector |
| Cavity size | 21mm x 90 mm cross section |
| Approvals | UL |
Specifications come from the Revision 1.1.1 datasheet. Confirm against the datasheet below before committing a design.
Chargers for this pack
Documents
About this part
Ni3020QE29 Smart Lithium-Ion Battery: The Ni3020 is ideal for low temperature applications as the low internal impedance enables the cells to deliver good capacity and discharge current while offering IEC, UL, CSA 62133-2, BIS, KC & PSE to meet the highest industry standards for safety and performance. The Ni3020 can perform as low as -30°C (note, in cases of low temperature applications, we strongly recommend testing in your specific application). Also, with its 10A discharge capability, the Ni3020HD29 is ideally suited as a small “hot-swap” battery to hold up the device for a short period while the main battery is charged. Features: • SMbus • Pull tab for easy removal • On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance. Ni3020QE29 Smart Li-ion battery customization options: • SHA-1 secure handshake • Custom label • Custom Firmware • Additional performance options for OEM applications N-series chargers are recommended for these batteries. Looking for something with a smaller format? We recommend the Ni2020HD29 smart battery The Ni3020QE29 is our newest model, designed to outperform the previous Ni3020HD29 and other models such as Ni2020ED29, Ni3020HD25, 26 & 30.
