RH3024HD34
14.4 V smart lithium-ion battery

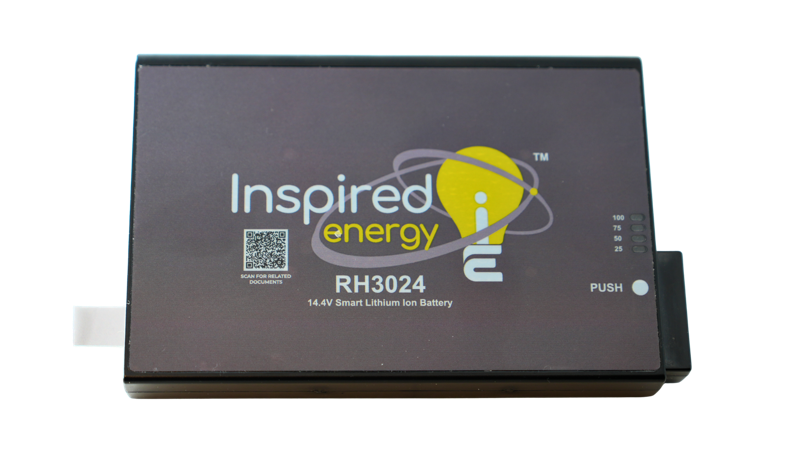

14.4 V 6.8 Ah smart lithium-ion battery pack.
- 14.4 V
- Nominal voltage
- 6.8 Ah
- Capacity
- 98 Wh
- Energy
- 10 A
- Max current
N-Series
What the RH3024HD34 brings to the device
Every line on this page traces to the current datasheet revision engineering approved. Nothing here is marketing copy about a generic pack.
Talk to an engineer →-
On-pack fuel gauge
Push button 4-bar LED. Charge state at a glance, no host required.
-
Cell pack
8 x 18650 lithium-ion cells in a 4S2P array, matched and welded in Newberry, Florida.
-
Compact, rugged case
167.7 x 109.22 x 22.86 mm, rectangular. Molded here, not imported.
Specifications
| Nominal voltage | 14.4 V |
|---|---|
| Capacity | 6.8 Ah |
| Energy | 98 Wh |
| Maximum discharge current | 10 A |
| Rated power | 100 W |
| Chemistry | Lithium-ion |
| Cell | 8 x 18650 |
| Cell array | 4S2P |
| Shape | Rectangular |
| Dimensions (in) | 6.6" x 4.3" x 0.9" |
| Dimensions (mm) | 167.7 x 109.22 x 22.86 |
| Equivalent lithium content | 8 g |
| Fuel gauge | Push button 4-bar LED |
| IP rating | None |
| Mating connector | 5-Pin Standard Connector |
| Cavity size | 22.5mm x 109mm cross section |
Specifications come from the Revision 1.0.1 datasheet. Confirm against the datasheet below before committing a design.
Chargers for this pack
Documents
About this part
Capable of higher discharge rates than RH2024 smart battery packs, the RH3024HD34 battery pack incorporates the standard features that designers and engineers have come to rely on for safety and function, such as SMbus, a pull tab for easy removal and on-pack LED display for relative SOC indication. The RH3024 ( 4S2P ) 14.4V lithium ion pack has tested as low as -20C and is ideally designed for use in portable devices. (Note, in cases of low temperature applications, we strongly recommend testing in your specific application). With 10A discharge capability, RH3024 batteries are ideally suited as a small hot-swap battery to hold up the device for a short period while the main battery is charged. CH-series chargers are recommended for these batteries. RH 3024 smart liIon batteries can be customized to meet unique specifications. SHA-1 secure handshake, custom label, custom firmware and additional performance options are available for OEM applications. Creating custom-hybrids of standard batteries is a part of Inspired Energy’s established expertise. You are welcome to work directly with our technical, engineering and manufacturing staff here at our headquarters in Newberry, Florida. We currently ship our products to over 96 countries. This email address is being protected from spambots. You need JavaScript enabled to view it. For new applications, please review the NH3054 models. The RH3024HD34 has been updated as a replacement for the previous NL2024ED & NL2024ED22 models.
