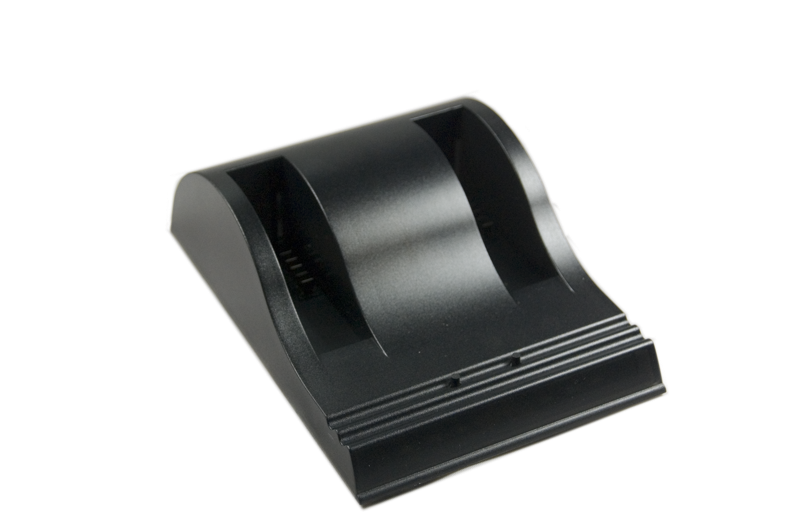

CH5050CAL
2-bay battery charger
The CH5050CAL 2-bay smart SMbus charger and calibrator is a standalone unit which charges (2) Inspired Energy batteries at the same time, reducing cycle time for multi-battery applications.
- 2 bays
- Capacity
- 4 packs
- Charges
- 3
- Cord regions
N-Series
What the CH5050CAL brings to the device
Every line on this page traces to the current datasheet revision engineering approved. Nothing here is marketing copy about a generic pack.
Talk to an engineer →-
2-bay charging
Charges 4 Inspired Energy packs. See the compatibility list below.
-
Charge + Calibrate
Charges the pack and recalibrates the fuel gauge so the reported capacity stays honest.
-
Universal mains input
110 to 240 VAC, 50 to 60 Hz, cords for US, EU, UK.
-
Approvals
UL, CE, CEC, REACH, RoHS3.
Specifications
| Bays | 2 |
|---|---|
| Functions | Charge, Calibrate |
| Mains input | 110-240 VAC, 50-60 Hz |
| Power supply included | Yes |
| AC cord options | US, EU, UK |
| Mating connector | 5-Pin Standard Connector |
| Dimensions (in) | 7" x 5" x 2.25" |
| Dimensions (mm) | 180 x 122 x 58 |
| Not compatible with | P & Nx4xxx Series batteries CH5050E - NSN # 6130-01-671-8641 CH5050U - NSN # 613 |
| Approvals | UL, CE, CEC, REACH, RoHS3 |
Specifications come from the current datasheet. Confirm against the datasheet below before committing a design.
Stock numbers
| NSN (es batteries CH5050E) | 6130-01-671-8641 |
|---|---|
| NSN (CH5050U) | 6130-01-676-9083 |
Accessories that fit
Packs this works with
Documents
About this part
The CH5050CAL 2-bay smart SMbus charger and calibrator is a standalone unit which charges (2) Inspired Energy batteries at the same time, reducing cycle time for multi-battery applications. This is a unit used to adjust the battery state of charge to 25% for shipping or storage when the battery is inserted. While it also includes a full cycle re-calibration function that will leave the battery fully charged, it is not intended to be used to fully charge a battery. Complete with a universal power supply (110VAC-240VAC, 50-60HZ) for global compatibility. AC mains cord options available, please specify your country application when ordering. Compliant to the current environmental standards for REACH/RoHS3. Declarations are available below. UL Listed, CE Compliant, CEC Compliant The CH5050 is not compatible with P & Nx4xxx Series batteries CH5050E - NSN # 6130-01-671-8641 CH5050U - NSN # 6130-01-676-9083 Suffix, A (American), E (European), U (UK) Style power cord
