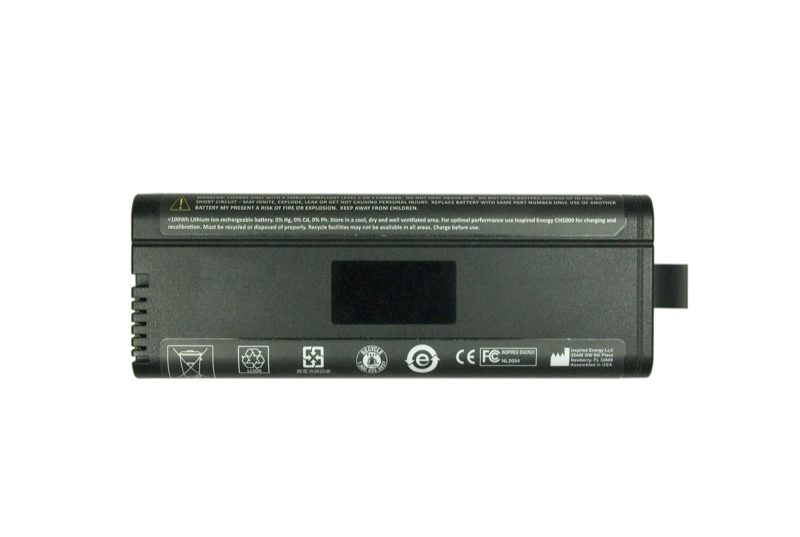

NL2054HD22
14.4 V smart lithium-ion battery
14.4 V 6.6 Ah smart lithium-ion battery pack.
- 14.4 V
- Nominal voltage
- 6.6 Ah
- Capacity
- 95 Wh
- Energy
- 8 A
- Max current
Limited availability. This part is quoted by sales rather than sold from stock. Ask about availability.
N-Series
What the NL2054HD22 brings to the device
Every line on this page traces to the current datasheet revision engineering approved. Nothing here is marketing copy about a generic pack.
Talk to an engineer →-
On-pack fuel gauge
Always on 5-Bar LCD. Charge state at a glance, no host required.
-
Cell pack
12 x 18650 lithium-ion cells in a 4S3P array, matched and welded in Newberry, Florida.
-
Compact, rugged case
215.9 x 78.7 x 22.86 mm, rectangular. Molded here, not imported.
Specifications
| Nominal voltage | 14.4 V |
|---|---|
| Capacity | 6.6 Ah |
| Energy | 95 Wh |
| Maximum discharge current | 8 A |
| Rated power | 80 W |
| Chemistry | Lithium-ion |
| Cell | 12 x 18650 |
| Cell array | 4S3P |
| Shape | Rectangular |
| Dimensions (in) | 8.5" x 3.1" x 0.9" |
| Dimensions (mm) | 215.9 x 78.7 x 22.86 |
| Equivalent lithium content | 8 g |
| Fuel gauge | Always on 5-Bar LCD |
| IP rating | None |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
| Cavity size | 23.5mm x 80mm cross section |
| Optional belt pack | MP20X or BPXX or BC2BVX |
Specifications come from the Revision 4.2 datasheet. Confirm against the datasheet below before committing a design.
Chargers for this pack
- CH1000 Charger, charge + calibrate
- CH4000 Charger, charge
- CH4040 2 bay, charge
- CH5000 Charger, charge + calibrate
- CH5050 2 bay, charge + calibrate
- CH5555 4 bay, charge + calibrate
- CH6555 6 bay, charge + calibrate
- CH7000 Charger, charge
- CR12 12 bay, charge
- CH4444 4 bay, charge
- Embedded Charger Boards Charger, charge
- CH1000CAL Charger, charge + calibrate
- CH1010 2 bay, charge + calibrate
- CH1111 4 bay, charge + calibrate
- CH1111CAL Charger, charge + calibrate
- CH7070 2 bay, charge
- CH7100 Charger, charge
- CH7171 Charger, charge
Accessories that fit
- 610005 Straight Connector - TE Part Number: 5787446-1
- 610007 90° Connector with Right-Hand Key - TE Part Number: 5787422-1
- 610018 90° Connector with Left-Hand Key - TE Part Number 5787428-1
- 629030 3', 2-Conductor coiled cable
- 936186 Travel / dust cap for 205x range batteries
- ATA004N USB-to-SMBus smart battery interface with “Y” USB/Battery cable.
- BL237A Connector Mounting Circuit Board
- EB397A Connector Board with Ideal Diode Circuit.
- 629028 3', 5-conductor straight cable for 204x, 205x, 304x & 305x range batteries.
Documents
About this part
We recommend the RH2054 for use, over previous NL2054 models. At 98Wh the latest 8-cell NH2054 or NH2034 models have a greater stored energy to this 12-cell model in a package which is 30% smaller and lighter. We recommend using these models for new designs. The NL2054 is capable for low temperature applications as it can perform as low as -20°C. (Note, in cases of low temperature applications, we strongly recommend testing in your specific application). Also, with its 8A discharge capability, the NL2054 is ideally suited as a small “hot-swap” battery to hold up the device for a short period while the main battery is charged. These smart Li-ion batteries can be customized to meet unique specifications. Custom label, custom firmware and some performance options are available. Creating custom-hybrids of standard batteries is a part of Inspired Energy’s established expertise. To place an order or for additional quantity pricing, please contact us.
