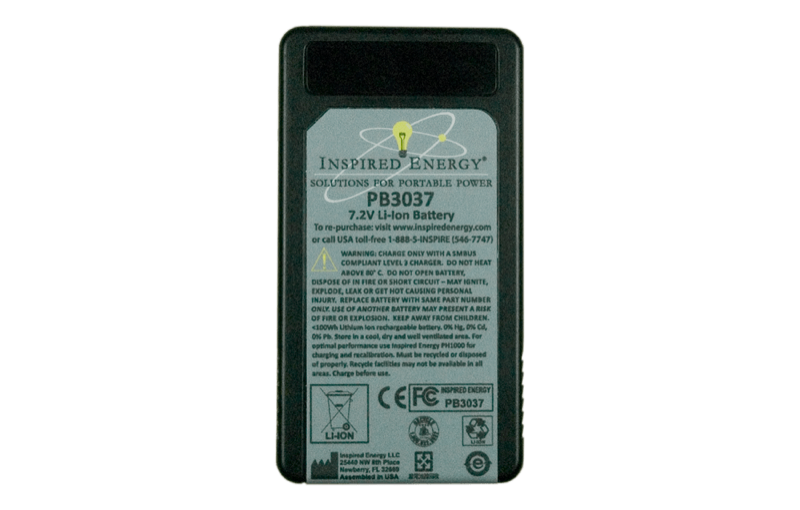

PB3037HD29
7.2 V smart lithium-ion battery
7.2 V 2.8 Ah smart lithium-ion battery pack.
- 7.2 V
- Nominal voltage
- 2.8 Ah
- Capacity
- 20 Wh
- Energy
- 10 A
- Max current
Limited availability. This part is quoted by sales rather than sold from stock. Ask about availability.
P-Series
What the PB3037HD29 brings to the device
Every line on this page traces to the current datasheet revision engineering approved. Nothing here is marketing copy about a generic pack.
Talk to an engineer →-
On-pack fuel gauge
Push button 4-bar LED. Charge state at a glance, no host required.
-
Cell pack
2 x 18650 lithium-ion cells in a 2S1P array, matched and welded in Newberry, Florida.
-
Compact, rugged case
99 x 54 x 29 mm, rectangular. Molded here, not imported.
Specifications
| Nominal voltage | 7.2 V |
|---|---|
| Capacity | 2.8 Ah |
| Energy | 20 Wh |
| Maximum discharge current | 10 A |
| Rated power | 50 W |
| Chemistry | Lithium-ion |
| Cell | 2 x 18650 |
| Cell array | 2S1P |
| Shape | Rectangular |
| Dimensions (in) | 3.8" x 2.1" x 54" |
| Dimensions (mm) | 99 x 54 x 29 |
| Equivalent lithium content | 4 g |
| Fuel gauge | Push button 4-bar LED |
| IP rating | IP65 |
| Mating connector | 7-Pin D-Sub |
Specifications come from the current datasheet. Confirm against the datasheet below before committing a design.
Chargers for this pack
Accessories that fit
- 936238A1 Travel Cap
- 619039 30A Right Angle PC mount mating connector for P- Series batteries.
- 699012 Backshell Required for 699013
- 699013 Straight "P" Connector for Flying Lead
- 699014 P-Series Mating connector kit.
- 699023 P-Series Mating connector kit.
- ATA005P USB-to-SMBus smart battery interface with “Y” USB/Battery cable Click here for Instructions and Software download (205 MB Zip File)
- EB429 Ideal Diode Board
Documents
Datasheet on request. The current revision for this part is issued by engineering. Ask for it and it comes with the quote.
About this part
The PB3037 high power density smart battery is ideal for use in uninterruptible power supply systems and low-current DC motors etc. Fitted with high power density Li-ion manganese cells enables very high current delivery for short periods. Complete with a new standard connector to handle its higher operating voltage and higher discharge currents. Its rugged construction rating reflects its application in mobile environments. The P-series charger is required for these batteries. These smart Li-ion batteries can be customized to meet unique specifications. Custom label, custom firmware and some performance options are available. Creating custom-hybrids of standard batteries is a part of Inspired Energy’s established expertise. The PB3037HD29 has been updated as a replacement for the previous PB3037HD25 & 26 models. Please contact Sales to discuss volume pricing and availability. Extended lead time will apply.
