- P-Series
- Charger

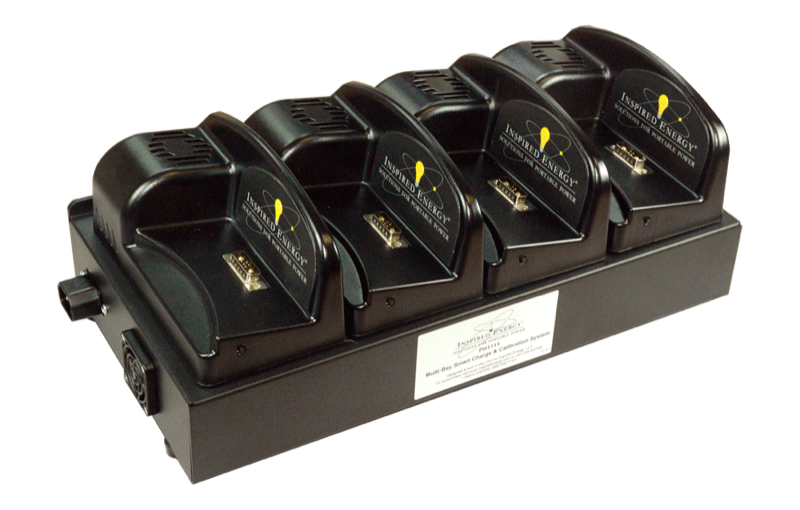

PH1111
4-bay battery charger
The PH1111 4-bay, simultaneous smart SMbus charger and calibrator is a standalone unit which charges any 4 “P-Series” Inspired Energy batteries at the same time, reducing cycle time for...
- 4 bays
- Capacity
- 10 packs
- Charges
- 3
- Cord regions
P-Series
What the PH1111 brings to the device
Every line on this page traces to the current datasheet revision engineering approved. Nothing here is marketing copy about a generic pack.
Talk to an engineer →-
4-bay charging
Charges 10 Inspired Energy packs. See the compatibility list below.
-
Charge + Calibrate
Charges the pack and recalibrates the fuel gauge so the reported capacity stays honest.
-
Universal mains input
110 to 240 VAC, 50 to 60 Hz, cords for US, EU, UK.
-
Approvals
UL, REACH.
Specifications
| Bays | 4 |
|---|---|
| Functions | Charge, Calibrate |
| Mains input | 110-240 VAC, 50-60 Hz |
| AC cord options | US, EU, UK |
| Mating connector | 7-Pin D-Sub |
| Dimensions (in) | 16" x 8" x 6.25" |
| Dimensions (mm) | 400 x 203 x 159 |
| Approvals | UL, REACH |
Specifications come from the current datasheet. Confirm against the datasheet below before committing a design.
Packs this works with
Documents
About this part
The PH1111 4-bay, simultaneous smart SMbus charger and calibrator is a standalone unit which charges any 4 “P-Series” Inspired Energy batteries at the same time, reducing cycle time for multi-battery applications. Variants are available for use in North America (PH1111A), Europe (PH1111E) or the UK (PH1111U) with a universal power input (110VAC-240VAC, 50-60HZ) for global compatibility. Compliant to the current environmental standards for REACH/RoHS2. CE/FCC & customs Declarations are available below. To place an order or for additional quantity pricing, please contact us.
