NC2040HD34
10.8 V smart lithium-ion battery

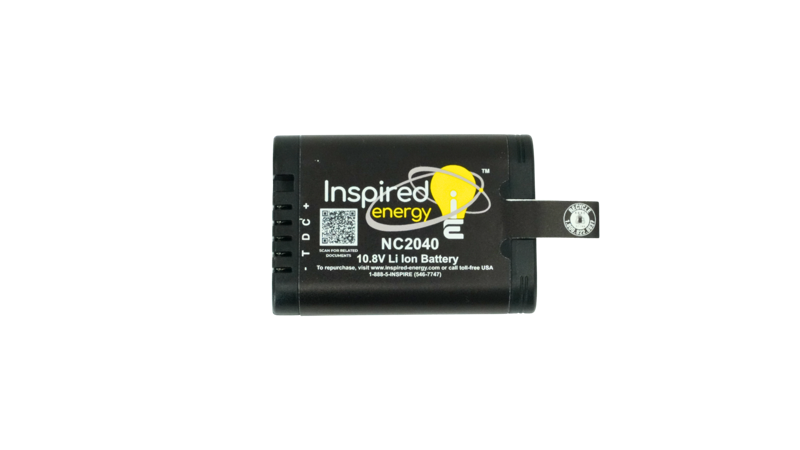

10.8 V 3.4 Ah smart lithium-ion battery pack.
- 10.8 V
- Nominal voltage
- 3.4 Ah
- Capacity
- 37 Wh
- Energy
- 4 A
- Max current
N-Series
What the NC2040HD34 brings to the device
Every line on this page traces to the current datasheet revision engineering approved. Nothing here is marketing copy about a generic pack.
Talk to an engineer →-
On-pack fuel gauge
Always on 5-Bar LCD. Charge state at a glance, no host required.
-
Cell pack
x 18650 lithium-ion cells in a 3S1P array, matched and welded in Newberry, Florida.
-
Approvals
UL. Testing summary in the documents below.
Specifications
| Nominal voltage | 10.8 V |
|---|---|
| Capacity | 3.4 Ah |
| Energy | 37 Wh |
| Maximum discharge current | 4 A |
| Rated power | 30 W |
| Chemistry | Lithium-ion |
| Cell | x 18650 |
| Cell array | 3S1P |
| Shape | Rectangular |
| Dimensions (in) | 3.34" x 2.31" x 0.86" |
| Dimensions (mm) | 84.87 x 58.77 x 21.89 |
| Equivalent lithium content | 3 g |
| Fuel gauge | Always on 5-Bar LCD |
| IP rating | None |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
| Cavity size | 23.5mm x 60mm cross section |
| Approvals | UL |
Specifications come from the Revision 2.0 datasheet. Confirm against the datasheet below before committing a design.
Stock numbers
| NSN | 6140-01-628-9637 |
|---|
Chargers for this pack
Accessories that fit
- 610005 Straight Connector - TE Part Number: 5787446-1
- 610007 90° Connector with Right-Hand Key - TE Part Number: 5787422-1
- 610018 90° Connector with Left-Hand Key - TE Part Number 5787428-1
- 629028 3', 5-conductor straight cable for 204x, 205x, 304x & 305x range batteries.
- 629030 3', 2-Conductor coiled cable
- 936140 Travel / dust cap for 204x range batteries
- ATA004N USB-to-SMBus smart battery interface with “Y” USB/Battery cable.
- BL237A Connector Mounting Circuit Board
- EB397A Connector Board with Ideal Diode Circuit.
- MC20402 Belt pack holster for NCx04x batteries with integrated charger.
- MC20404 Belt pack holster for NCx04x batteries with integrated charger.
- MP20401 Holster for NCx04x batteries.
- MP20402 Belt pack holster for NCx04x batteries.
- MP20403 Belt pack holster for NCx04x batteries.
Documents
About this part
NC2040HD34 Smart Lithium-Ion Battery: Introduced in 2004, the Inspired Energy 2040 range of rechargeable smart Li-Ion battery packs utilize 18650 cells and are designed for applications where size may be a consideration, making it ideal for handheld devices. The NC2040HD34 ( 3S1P ) 10.8V smart lithium ion battery incorporates the standard features that designers and engineers have come to rely on for safety and function, such as SMbus, a pull tab for easy removal and on-pack LCD display for relative SOC indication. The NC2040 battery pack can perform at -20°C for low temperature applications, as the low internal impedance enable the cells to deliver good capacity and discharge current. (Note, in low temperature applications, we recommend testing the device at temperature to validate performance). Features: • SMbus • Pull tab for easy removal • On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance. NC2040HD34 Smart Li-ion battery customization options: • SHA-1 secure handshake • Custom label • Custom Firmware • Additional performance options for OEM applications N-series chargers are recommended for these batteries. Need IEC, UL, CSA 62133-2, KC, BIS PSE approved? Consider the NC2040QE34 smart battery Looking for something with a higher discharge rate and lower temperature option? We recommend the NC3040HD29 smart battery The NC2040HD34 is our newest model, designed to outperform the previous NC2040A22, NC2040A24, NC2040HD22, NC2040HD24, NC2040HD29, NC2040HD31 & NC2040XD24 (NSN # 6140-01-628-9637)
