- N-Series
- Battery pack
NC3040HD29
10.8 V smart lithium-ion battery

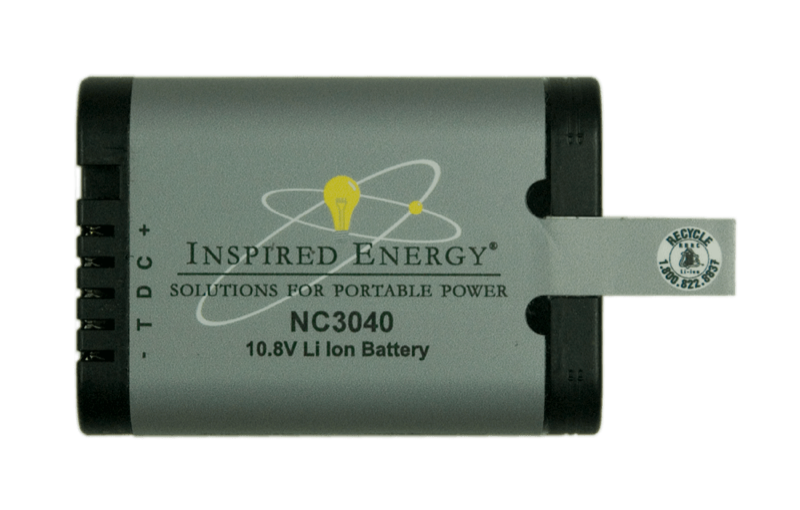

10.8 V 2.8 Ah smart lithium-ion battery pack.
- 10.8 V
- Nominal voltage
- 2.8 Ah
- Capacity
- 30 Wh
- Energy
- 8 A
- Max current
N-Series
What the NC3040HD29 brings to the device
Every line on this page traces to the current datasheet revision engineering approved. Nothing here is marketing copy about a generic pack.
Talk to an engineer →-
On-pack fuel gauge
Always on 5-Bar LCD. Charge state at a glance, no host required.
-
Cell pack
3 x 18650 lithium-ion cells in a 3S1P array, matched and welded in Newberry, Florida.
-
Approvals
UL. Testing summary in the documents below.
Specifications
| Nominal voltage | 10.8 V |
|---|---|
| Capacity | 2.8 Ah |
| Energy | 30 Wh |
| Maximum discharge current | 8 A |
| Rated power | 60 W |
| Chemistry | Lithium-ion |
| Cell | 3 x 18650 |
| Cell array | 3S1P |
| Shape | Rectangular |
| Dimensions (in) | 3.4" x 2.4" x 0.9" |
| Dimensions (mm) | 85.1 x 59.02 x 22.4 |
| Equivalent lithium content | 3 g |
| Fuel gauge | Always on 5-Bar LCD |
| IP rating | None |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
| Cavity size | 23.5mm x 60mm cross section |
| Approvals | UL |
Specifications come from the Revision 1.0.1 datasheet. Confirm against the datasheet below before committing a design.
Chargers for this pack
- CH1000 Charger, charge + calibrate
- CH4000 Charger, charge
- CH4040 2 bay, charge
- CH5000 Charger, charge + calibrate
- CH5050 2 bay, charge + calibrate
- CH5555 4 bay, charge + calibrate
- CH6555 6 bay, charge + calibrate
- CH7000 Charger, charge
- CR12 12 bay, charge
- CH1000CAL Charger, charge + calibrate
- CH1010 2 bay, charge + calibrate
- CH1111 4 bay, charge + calibrate
- CH1111CAL Charger, charge + calibrate
- CH4444 4 bay, charge
- CH7070 2 bay, charge
- CH7100 Charger, charge
- CH7171 Charger, charge
Accessories that fit
- 610005 Straight Connector - TE Part Number: 5787446-1
- 610007 90° Connector with Right-Hand Key - TE Part Number: 5787422-1
- 610018 90° Connector with Left-Hand Key - TE Part Number 5787428-1
- 629028 3', 5-conductor straight cable for 204x, 205x, 304x & 305x range batteries.
- 629030 3', 2-Conductor coiled cable
- 936140 Travel / dust cap for 204x range batteries
- ATA004N USB-to-SMBus smart battery interface with “Y” USB/Battery cable.
- BL237A Connector Mounting Circuit Board
- EB397A Connector Board with Ideal Diode Circuit.
- MC20402 Belt pack holster for NCx04x batteries with integrated charger.
- MC20404 Belt pack holster for NCx04x batteries with integrated charger.
- MP20401 Holster for NCx04x batteries.
- MP20402 Belt pack holster for NCx04x batteries.
- MP20403 Belt pack holster for NCx04x batteries.
Documents
About this part
NC3040HD29 Smart Lithium-Ion Battery: Capable of higher discharge rates and lower temperature operation than NC2040 smart battery packs, the NC3040HD29 battery pack incorporates the standard features that designers and engineers have come to rely on for safety and function, such as SMbus, a pull tab for easy removal and on-pack LCD display for relative SOC indication. The NC3040 (3S1P) 10.8V lithium ion pack has tested as low as -30C and is ideally designed for use in compact and handheld devices. (Note, in cases of low temperature applications, we strongly recommend testing in your specific application). With 8A discharge capability, NC3040 batteries are ideally suited as a small hot-swap battery to hold up the device for a short period while the main battery is charged. Features: • SMbus • Pull tab for easy removal • On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance. Nc3040HD29 Smart Li-ion battery customization options: • SHA-1 secure handshake • Custom label • Custom Firmware • Additional performance options for OEM applications N-series chargers are recommended for these batteries. Need IEC, UL, CSA 62133-2, KC, BIS PSE approved? Consider the NC3040QE29 smart battery The NC3040HD29 has been updated as a replacement for the previous NC3040HD25 & HD26 models.
