- N-Series
- Battery pack

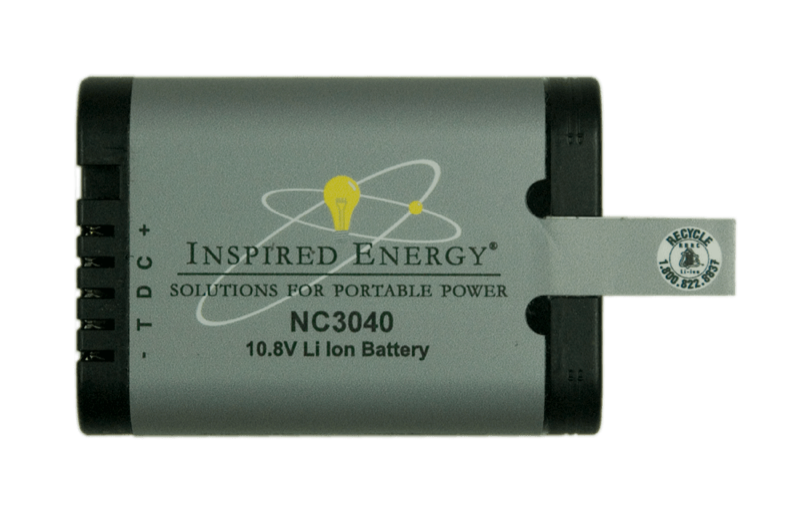

NC3040HD30
10.8 V smart lithium-ion battery
10.8 V 3 Ah smart lithium-ion battery pack.
- 10.8 V
- Nominal voltage
- 3 Ah
- Capacity
- 32 Wh
- Energy
- 8 A
- Max current
N-Series
What the NC3040HD30 brings to the device
Every line on this page traces to the current datasheet revision engineering approved. Nothing here is marketing copy about a generic pack.
Talk to an engineer →-
On-pack fuel gauge
Always on 5-Bar LCD. Charge state at a glance, no host required.
-
Cell pack
x 18650 lithium-ion cells in a 3S1P array, matched and welded in Newberry, Florida.
-
Compact, rugged case
85.1 x 59.02 x 22.4 mm. Molded here, not imported.
Specifications
| Nominal voltage | 10.8 V |
|---|---|
| Capacity | 3 Ah |
| Energy | 32 Wh |
| Maximum discharge current | 8 A |
| Rated power | 60 W |
| Chemistry | Lithium-ion |
| Cell | x 18650 |
| Cell array | 3S1P |
| Dimensions (in) | 3.4" x 2.4" x 0.9" |
| Dimensions (mm) | 85.1 x 59.02 x 22.4 |
| Equivalent lithium content | 3 g |
| Fuel gauge | Always on 5-Bar LCD |
| IP rating | None |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
| Cavity size | 23.5mm x 60mm cross section |
Specifications come from the Revision 2.0 datasheet. Confirm against the datasheet below before committing a design.
Chargers for this pack
Documents
About this part
The NC3040 is ideal for low temperature applications as the low internal impedance enables the cells to deliver good capacity and discharge current. The NC3040 can perform as low as -10C and the has tested as low as -30C. (Note, in cases of low temperature applications, we strongly recommend testing in your specific application). Also, with its 8A discharge capability, the NC3040 is ideally suited as a small hot-swap battery to hold up the device for a short period while the main battery is charged. These smart Li-ion batteries can be customized to meet unique specifications. Custom label, custom firmware and some performance options are available. Creating custom-hybrids of standard batteries is a part of Inspired Energy’s established expertise. To place an order or for additional quantity pricing, please contact us.
