- Battery pack

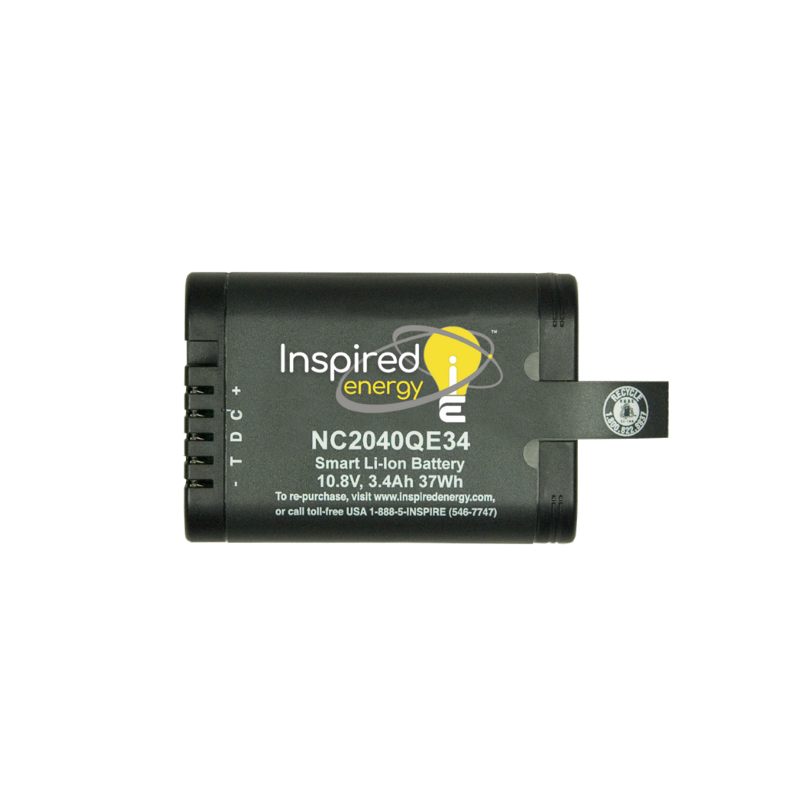

NC2040QE34
10.8 V smart lithium-ion battery
10.8 V 3.4 Ah smart lithium-ion battery pack.
- 10.8 V
- Nominal voltage
- 3.4 Ah
- Capacity
- 37 Wh
- Energy
- 4 A
- Max current
Available for direct purchase, quantities of 1 to 12. Volume orders are quoted.
N-Series
What the NC2040QE34 brings to the device
Every line on this page traces to the current datasheet revision engineering approved. Nothing here is marketing copy about a generic pack.
Talk to an engineer →-
On-pack fuel gauge
Always on 5-Bar LCD. Charge state at a glance, no host required.
-
Cell pack
x 18650 lithium-ion cells in a 3S1P array, matched and welded in Newberry, Florida.
-
Approvals
UL.
Specifications
| Nominal voltage | 10.8 V |
|---|---|
| Capacity | 3.4 Ah |
| Energy | 37 Wh |
| Maximum discharge current | 4 A |
| Rated power | 30 W |
| Chemistry | Lithium-ion |
| Cell | x 18650 |
| Cell array | 3S1P |
| Shape | Rectangular |
| Dimensions (in) | 3.34" x 2.31" x 0.86" |
| Dimensions (mm) | 84.87 x 58.77 x 21.89 |
| Equivalent lithium content | 3 g |
| Fuel gauge | Always on 5-Bar LCD |
| IP rating | None |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
| Cavity size | 23.5mm x 60mm cross section |
| Approvals | UL |
Specifications come from the Revision 3.0 datasheet. Confirm against the datasheet below before committing a design.
Stock numbers
| NSN | 6140-01-628-9637 |
|---|
Chargers for this pack
- CH1000 Charger, charge + calibrate
- CH4000 Charger, charge
- CH4040 2 bay, charge
- CH5000 Charger, charge + calibrate
- CH5050 2 bay, charge + calibrate
- CH5555 4 bay, charge + calibrate
- CH6555 6 bay, charge + calibrate
- CH7000 Charger, charge
- CR12 12 bay, charge
- CH1000CAL Charger, charge + calibrate
- CH1111 4 bay, charge + calibrate
- CH1111CAL Charger, charge + calibrate
- CH7100 Charger, charge
- CH1010 2 bay, charge + calibrate
- CH4444 4 bay, charge
- CH7070 2 bay, charge
- CH7171 Charger, charge
Accessories that fit
- 610005 Straight Connector - TE Part Number: 5787446-1
- 610007 90° Connector with Right-Hand Key - TE Part Number: 5787422-1
- 610018 90° Connector with Left-Hand Key - TE Part Number 5787428-1
- 629028 3', 5-conductor straight cable for 204x, 205x, 304x & 305x range batteries.
- 629030 3', 2-Conductor coiled cable
- 936140 Travel / dust cap for 204x range batteries
- ATA004N USB-to-SMBus smart battery interface with “Y” USB/Battery cable.
- BL237A Connector Mounting Circuit Board
- EB397A Connector Board with Ideal Diode Circuit.
- MC20402 Belt pack holster for NCx04x batteries with integrated charger.
- MC20404 Belt pack holster for NCx04x batteries with integrated charger.
- MP20401 Holster for NCx04x batteries.
- MP20402 Belt pack holster for NCx04x batteries.
- MP20403 Belt pack holster for NCx04x batteries.
Documents
About this part
NC2040QE34 Smart Lithium-Ion Battery: The NC2040QE34 is the IEC, UL, CSA 62133-2, KC, BIS & PSE approved model of the NC2040HD34 ( 3S1P ) 10.8V smart lithium ion battery which incorporates the standard features that designers and engineers have come to rely on for safety and function, such as SMbus, a pull tab for easy removal and on-pack LCD display for relative SOC indication. The NC2040 10.8V battery pack can perform at -20°C for low temperature applications, as the low internal impedance enable the cells to deliver good capacity and discharge current. (Note, in low temperature applications, we recommend testing the device at temperature to validate performance). With IEC & Follow up service this 10.8V design makes this pack ideal for use in portable medical and instrumentation devices. Features: • SMbus • Pull tab for easy removal • On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance. NC2040QE34 Smart Li-ion battery customization options: • SHA-1 secure handshake • Custom label • Custom Firmware • Additional performance options for OEM applications N-series chargers are recommended for these batteries. Looking for something with a higher discharge rate and lower temperature option? We recommend the NC3040QE29 smart battery The NC2040QE34 is suitable as a replacement for the previous NC2040A22, NC2040A24, NC2040HD22, NC2040HD24, NC2040HD29, NC2040HD31 & NC2040XD24 (NSN # 6140-01-628-9637 ) Buy the NC2040QE34 and get it fast! https://www.inspired-energy.shop/products/nc2040qe34-10-8v-lithium-ion-smart-battery-pack
