- P-Series
- Battery pack
PH2054HD34
14.4 V smart lithium-ion battery

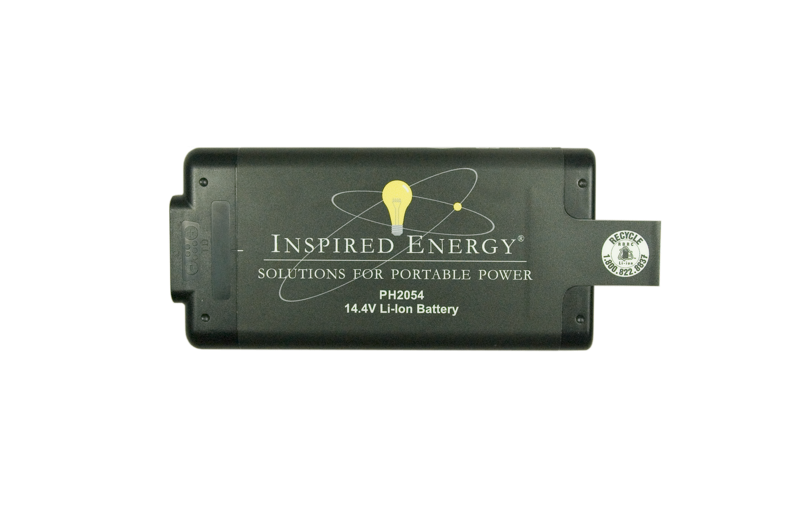

14.4 V 6.8 Ah smart lithium-ion battery pack.
- 14.4 V
- Nominal voltage
- 6.8 Ah
- Capacity
- 98 Wh
- Energy
- 10 A
- Max current
P-Series
What the PH2054HD34 brings to the device
Every line on this page traces to the current datasheet revision engineering approved. Nothing here is marketing copy about a generic pack.
Talk to an engineer →-
On-pack fuel gauge
Always on 5-Bar LCD. Charge state at a glance, no host required.
-
Cell pack
8 x 18650 lithium-ion cells in a 4S2P array, matched and welded in Newberry, Florida.
-
Compact, rugged case
168.1 x 81.8 x 27.7 mm, rectangular. Molded here, not imported.
Specifications
| Nominal voltage | 14.4 V |
|---|---|
| Capacity | 6.8 Ah |
| Energy | 98 Wh |
| Maximum discharge current | 10 A |
| Rated power | 100 W |
| Chemistry | Lithium-ion |
| Cell | 8 x 18650 |
| Cell array | 4S2P |
| Shape | Rectangular |
| Dimensions (in) | 6.62" x 3.22" x 1.1" |
| Dimensions (mm) | 168.1 x 81.8 x 27.7 |
| Equivalent lithium content | 6.9 g |
| Fuel gauge | Always on 5-Bar LCD |
| IP rating | None |
| Mating connector | 7-Pin D-Sub |
Specifications come from the Revision 2.0 datasheet. Confirm against the datasheet below before committing a design.
Chargers for this pack
Accessories that fit
- 619039 30A Right Angle PC mount mating connector for P- Series batteries.
- 699012 Backshell Required for 699013
- 699013 Straight "P" Connector for Flying Lead
- 699014 P-Series Mating connector kit.
- 699023 P-Series Mating connector kit.
- 936238A1 Travel Cap
- ATA005P USB-to-SMBus smart battery interface with “Y” USB/Battery cable Click here for Instructions and Software download (205 MB Zip File)
- EB429 Ideal Diode Board
Documents
About this part
The PH2054 uses high capacity cells to maximize the energy density stored within the rugged case. Complete with a new standard connector to handle its higher operating voltage and higher discharge currents. The P-series charger is required for these batteries. Its rugged construction rating reflects its application in mobile environments. These smart Li-ion batteries can be customized to meet unique specifications. Custom label, custom firmware and some performance options are available. Creating custom-hybrids of standard batteries is a part of Inspired Energy’s established expertise. Compatible with FG.1809, EM36-BPBT-1809 for EM360 units. To place an order or for additional quantity pricing, please contact us.
