- P-Series
- Battery pack

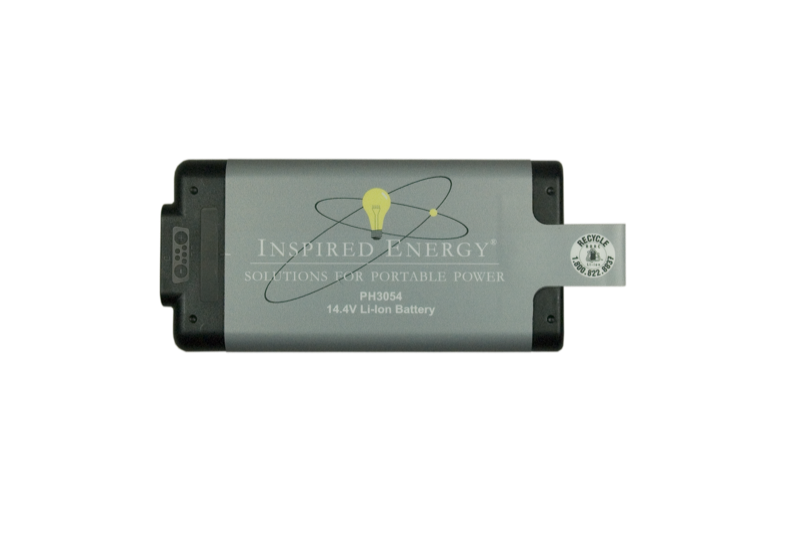

PH3054QE29
14.4 V smart lithium-ion battery
14.4 V 5.6 Ah smart lithium-ion battery pack.
- 14.4 V
- Nominal voltage
- 5.6 Ah
- Capacity
- 81 Wh
- Energy
- 20 A
- Max current
P-Series
What the PH3054QE29 brings to the device
Every line on this page traces to the current datasheet revision engineering approved. Nothing here is marketing copy about a generic pack.
Talk to an engineer →-
On-pack fuel gauge
Always on 5-Bar LCD. Charge state at a glance, no host required.
-
Cell pack
8 x 18650 lithium-ion cells in a 4S2P array, matched and welded in Newberry, Florida.
-
Approvals
UL. Testing summary in the documents below.
Specifications
| Nominal voltage | 14.4 V |
|---|---|
| Capacity | 5.6 Ah |
| Energy | 81 Wh |
| Maximum discharge current | 20 A |
| Rated power | 200 W |
| Chemistry | Lithium-ion |
| Cell | 8 x 18650 |
| Cell array | 4S2P |
| Shape | Rectangular |
| Dimensions (in) | 6.62" x 3.22" x 1.1" |
| Dimensions (mm) | 168.1 x 81.8 x 27.7 |
| Equivalent lithium content | 4 g |
| Fuel gauge | Always on 5-Bar LCD |
| IP rating | None |
| Mating connector | AMP/TYCO 787615-1, 787614-1 and 787613-1 |
| Cavity size | 27.8mm x 98.1mm cross section |
| Approvals | UL |
Specifications come from the Revision 1.1.1 datasheet. Confirm against the datasheet below before committing a design.
Chargers for this pack
Accessories that fit
- 936238A1 Travel Cap
- 619039 30A Right Angle PC mount mating connector for P- Series batteries.
- 699012 Backshell Required for 699013
- 699013 Straight "P" Connector for Flying Lead
- 699014 P-Series Mating connector kit.
- 699023 P-Series Mating connector kit.
- ATA005P USB-to-SMBus smart battery interface with “Y” USB/Battery cable Click here for Instructions and Software download (205 MB Zip File)
- EB429 Ideal Diode Board
Documents
About this part
The IEC & UL 62133-2 certified PH3054QE29 high power density smart battery is ideal for use in uninterruptible power supply systems and low-current DC motors etc. Fitted with high power density Li-ion manganese cells enables very high current delivery for short periods. Complete with a new standard connector to handle its higher operating voltage and higher discharge currents. Its rugged construction rating reflects its application in mobile environments. The P-series charger is required for these batteries. These smart Li-ion batteries can be customized to meet unique specifications. Custom label, custom firmware and some performance options are available. Creating custom-hybrids of standard batteries is a part of Inspired Energy’s established expertise. The battery has the following approvals and the pack will be labeled according:• CE• FCC Part 15 Class B• UKCA• IEC 62133-2 with CB Report• UL 62133-2• Japan PSE• Korean KC• India BIS The PH3054QE29 has been updated as a replacement for the previous PH3054xx25 & 26 models. To place an order or for additional quantity pricing, please contact us.
