- P-Series
- Battery pack
PH3059HD29
28.8 V smart lithium-ion battery

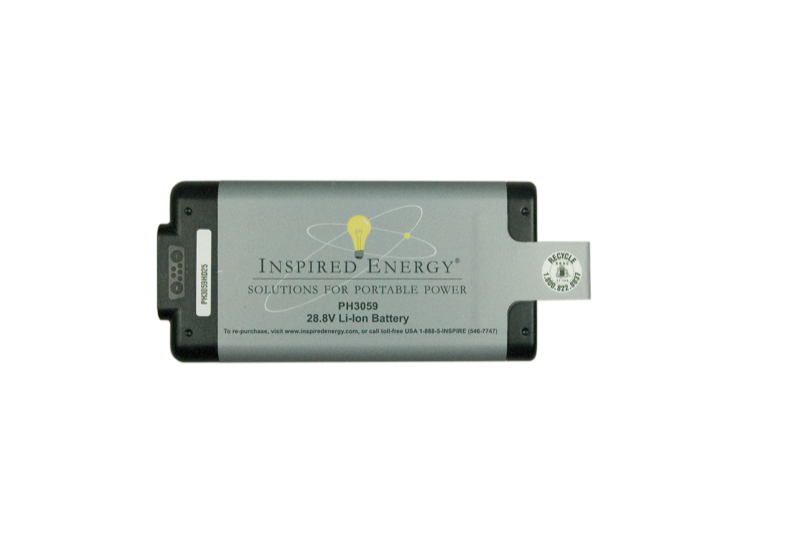

28.8 V 2.8 Ah smart lithium-ion battery pack.
- 28.8 V
- Nominal voltage
- 2.8 Ah
- Capacity
- 81 Wh
- Energy
- 12 A
- Max current
P-Series
What the PH3059HD29 brings to the device
Every line on this page traces to the current datasheet revision engineering approved. Nothing here is marketing copy about a generic pack.
Talk to an engineer →-
On-pack fuel gauge
Always on 5-Bar LCD. Charge state at a glance, no host required.
-
Cell pack
8 x 18650 lithium-ion cells in a 8S1P array, matched and welded in Newberry, Florida.
-
Compact, rugged case
168.1 x 81.8 x 27.7 mm, rectangular. Molded here, not imported.
Specifications
| Nominal voltage | 28.8 V |
|---|---|
| Capacity | 2.8 Ah |
| Energy | 81 Wh |
| Maximum discharge current | 12 A |
| Rated power | 240 W |
| Chemistry | Lithium-ion |
| Cell | 8 x 18650 |
| Cell array | 8S1P |
| Shape | Rectangular |
| Dimensions (in) | 6.62" x 3.22" x 1.1" |
| Dimensions (mm) | 168.1 x 81.8 x 27.7 |
| Equivalent lithium content | 4 g |
| Fuel gauge | Always on 5-Bar LCD |
| IP rating | None |
| Mating connector | 7-Pin D-Sub |
| Cavity size | 27.8mm x 98.1mm cross section |
Specifications come from the Revision 1.1.1 datasheet. Confirm against the datasheet below before committing a design.
Chargers for this pack
Accessories that fit
- 936238A1 Travel Cap
- 619039 30A Right Angle PC mount mating connector for P- Series batteries.
- 699012 Backshell Required for 699013
- 699013 Straight "P" Connector for Flying Lead
- 699014 P-Series Mating connector kit.
- 699023 P-Series Mating connector kit.
- ATA005P USB-to-SMBus smart battery interface with “Y” USB/Battery cable Click here for Instructions and Software download (205 MB Zip File)
- EB429 Ideal Diode Board
Documents
About this part
